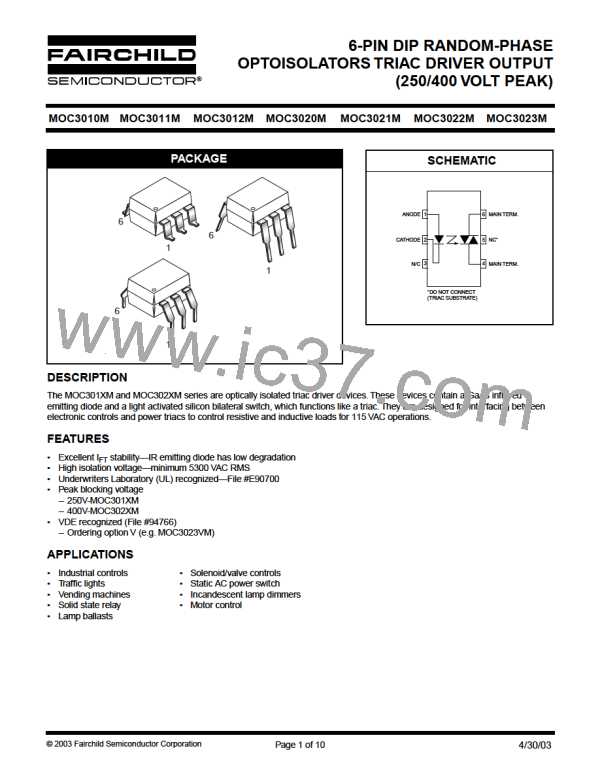

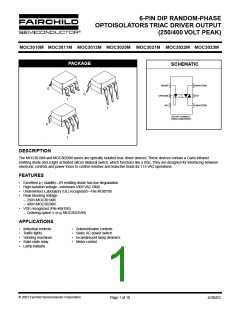

6-PIN DIP RANDOM-PHASE
OPTOISOLATORS TRIAC DRIVER OUTPUT
(250/400 VOLT PEAK)
MOC3010M MOC3011M
MOC3012M
MOC3020M
MOC3021M
MOC3022M
MOC3023M
PACKAGE
SCHEMATIC
ANODE 1
6 MAIN TERM.
6
6
1
N/C 3
4 MAIN TERM.
CATHODE 2
5 NC*
1
*DO NOT CONNECT
(TRIAC SUBSTRATE)
6
1
DESCRIPTION
The MOC301XM and MOC302XM series are optically isolated triac driver devices. These devices contain a GaAs infrared
emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between
electronic controls and power triacs to control resistive and inductive loads for 115 VAC operations.
FEATURES
Excellent I
FT
stability—IR emitting diode has low degradation
High isolation voltage—minimum 5300 VAC RMS
Underwriters Laboratory (UL) recognized—File #E90700
Peak blocking voltage
– 250V-MOC301XM
– 400V-MOC302XM
• VDE recognized (File #94766)
– Ordering option V (e.g. MOC3023VM)
APPLICATIONS
Industrial controls
Traffic lights
Vending machines
Solid state relay
Lamp ballasts
Solenoid/valve controls
Static AC power switch
Incandescent lamp dimmers
Motor control
© 2003 Fairchild Semiconductor Corporation
