EN5339QI
Ordering Information
Part Number
EN5339QI
EN5339QI-E
Package Markings
EN5339
EN5339
Temp Rating (°C)
-40 to +85
Package Description
24-pin (4mm x 6mm x 1.1mm) QFN T&R
QFN Evaluation Board
Packing and Marking Information: http://www.enpirion.com/resource-center-packing-and-marking-information.htm
Pin Assignments (Top View)

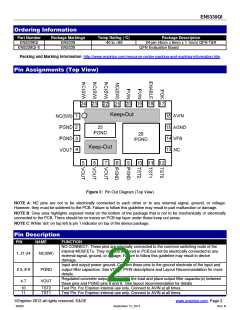

Figure 3: Pin Out Diagram (Top View)
NOTE A: NC pins are not to be electrically connected to each other or to any external signal, ground, or voltage.
However, they must be soldered to the PCB. Failure to follow this guideline may result in part malfunction or damage.
NOTE B: Grey area highlights exposed metal on the bottom of the package that is not to be mechanically or electrically
connected to the PCB. There should be no traces on PCB top layer under these keep out areas.
NOTE C: White ‘dot’ on top left is pin 1 indicator on top of the device package.
Pin Description
PIN
NAME
FUNCTION
NO CONNECT: These pins are internally connected to the common switching node of the
internal MOSFETs. They must be soldered to PCB but not be electrically connected to any
external signal, ground, or voltage. Failure to follow this guideline may result in device
damage.
1, 21-24
NC(SW)
Input and output power ground. Connect these pins to the ground electrode of the input and
output filter capacitors. See VOUT, PVIN descriptions and Layout Recommendation for more
details.
2-3, 8-9
4-7
PGND
VOUT
Regulated converter output. Connect to the load and place output filter capacitor(s) between
these pins and PGND pins 8 and 9. See layout recommendation for details
Test Pin. For Enpirion internal use only. Connect to AVIN at all times.
Test Pin. For Enpirion internal use only. Connect to AVIN at all times.
10
11
TST2
TST1
