The following figure shows LGP=0 and HF=1. The IROUT waveform modulates the
Fcarrier waveform at low-time segments of the pulse. When IRE goes low from high,
the output waveform of IROUT will keep transmitting until high-time interrupt occurs.
Fcarrier
low time width
high time width
low time width
high time width
HF
Start
IR disable
IRE
IROUT
Always high-level
Fig. 6-13c LGP=0, HF=1, When IRE goes Low from High, IROUT Pin Outputs Waveform

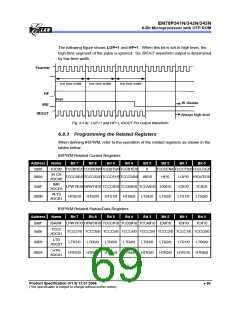

The following figure shows LGP=0 and HF=0. The IROUT waveform cannot modulate
the Fcarrier waveform at low-time segments of the pulse. So IROUT waveform is
determined by high time width and low time width. This mode can produce standard
PWM waveform when IRE goes low from high. The output waveform of IROUT will
keep on transmitting until high-time interrupt occurs.
Fcarrier
low time width
high time width
low time width
high time width
HF
Start
IR disable
IRE
IROUT
Always high-level
Fig. 6-13d LGP=0, HF=0, When IRE goes Low from High, Irout Pin Output Waveform
