Up to 150 Watts DC-DC Converter
SAFETY and EMC
Input Fusing and Safety Considerations
This HBR series converters have no internal fuse. In order to achieve maximum safety and system protection, always use an input line fuse. We
recommended a 5A time delay fuse. It is recommended that the circuit have a transient voltage suppressor diode (TVS) across the input terminal to
protect the unit against surge or spike voltage and input reverse voltage as shown below:

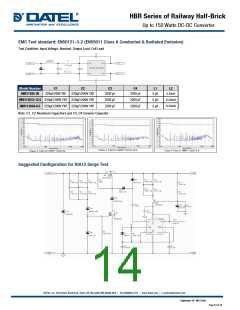

EMC Considerations
EMI Test standard: EN55022 Class B Conducted Emission
Test Condition: Input Voltage: Nominal, Output Load: Full Load
Model Number
HBR113S5-30
C1
C2
C3
C4
L1
L2
0.33mH
220µF/200V YXF
220µF/200V YXF
2200 pF
2200 pF
5 µH
0.33mH
0.33mH
HBR113S12-12.5 220µF/200V YXF 220µF/200V YXF
HBR113S24-6.5 220µF/200V YXF 220µF/200V YXF
2200 pF
2200 pF
2200 pF
2200 pF
5 µH
5 µH
Note: C1, C2 Aluminum Capacitors and C3, C4 Ceramic Capacitor
September 16 -2017 A.04
Page 13 of 15
