KP4010 Series
4PIN PHOTODARLINGTON
PHOTOCOUPLER
cosmo

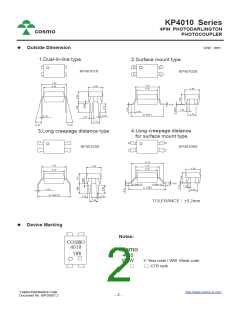

Outside Dimension
Unit : mm
1.Dual-in-line type.
2.Surface mount type.
KP40101X
KP40102X
7.62
6.50
7.62
6.50
4.60
4.60
0~10°
1.20
1.00
2.54
10.00±0.4
0.50
0.25
1.20
2.54
13.00°
13.00°
4.Long creepage distance
for surface mount type.
3.Long creepage distance type
KP40106X
KP40103X
10.16
7.62
7.62
6.50
4.60
4.60
6.50
0~10°
0.90±0.25
0.90±0.25
1.20
+0.2
-0.5
11.80
0.25
2.54
10.16±0.50
1.20
0.50
2.54
TOLERANCE：±0.2mm
Device Marking
Notes:
cosmo
4010
YWW
cosmo
4010
YWW
□
Y: Year code / WW: Week code
□: CTR rank
