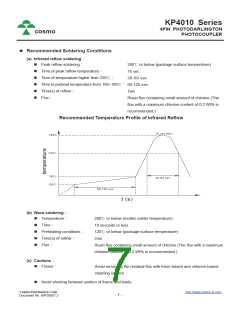

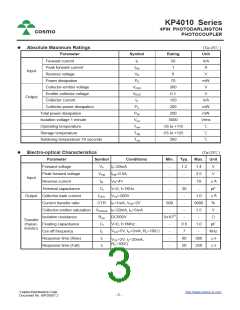

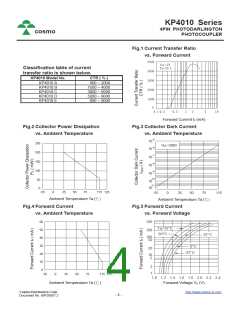

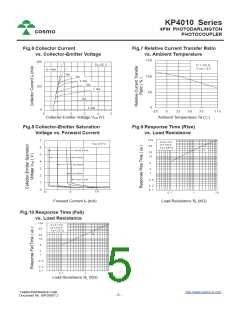

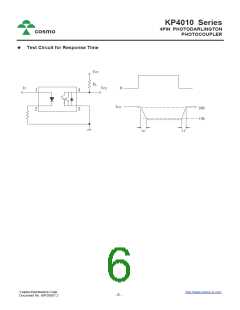

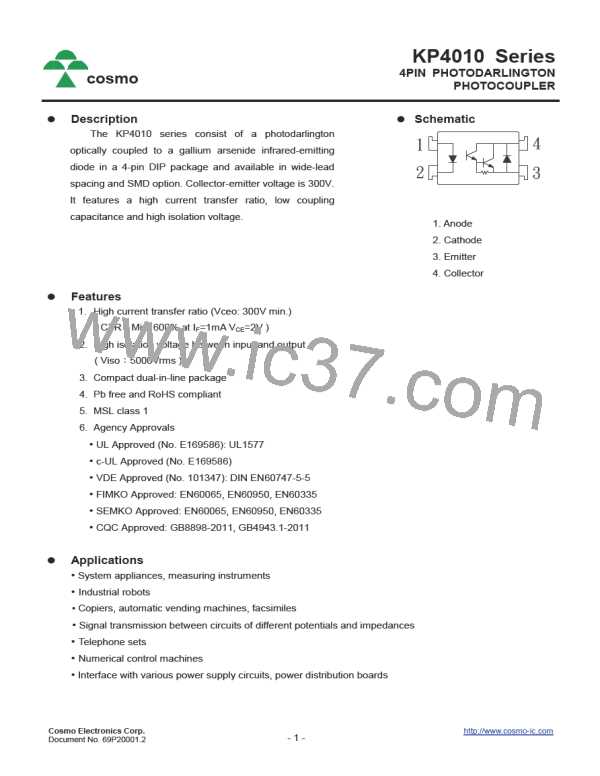

KP4010 Series
4PIN PHOTODARLINGTON
PHOTOCOUPLER
cosmo

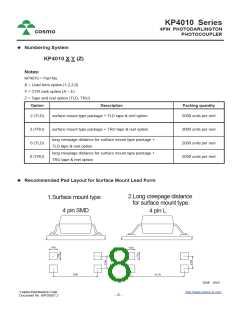

Numbering System
KP4010 X Y (Z)
Notes:
KP4010 = Part No.
X = Lead form option (1,2,3,6)
Y = CTR rank option (A ~ E)
Z = Tape and reel option (TLD, TRU)

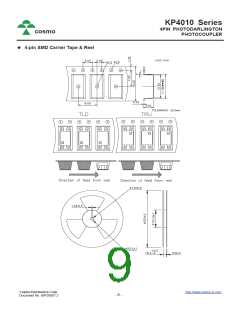

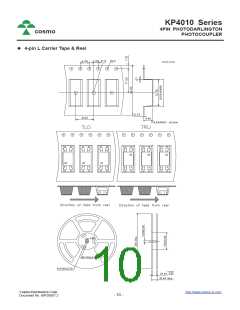

Option
Description
Packing quantity
2 (TLD)
2 (TRU)
6 (TLD)
6 (TRU)
surface mount type package + TLD tape & reel option
surface mount type package + TRU tape & reel option
2000 units per reel
2000 units per reel
2000 units per reel
2000 units per reel
long creepage distance for surface mount type package +
TLD tape & reel option
long creepage distance for surface mount type package +
TRU tape & reel option
Recommended Pad Layout for Surface Mount Lead Form
2.Long creepage distance
for surface mount type.
4 pin L
1.Surface mount type.
4 pin SMD
Unit : mm
Cosmo Electronics Corp.
Document No. 69P20001.2
http://www.cosmo-ic.com
- 8 -
