CS4365
5.7.2 Channel A Volume = Channel B Volume (Px_A=B)
Default = 0
0 - Disabled
1 - Enabled
Function:
The AOUTAx and AOUTBx volume levels are independently controlled by the A and the B Channel Volume
Control Bytes when this function is disabled. The volume on both AOUTAx and AOUTBx are determined
by the A Channel Attenuation and Volume Control Bytes (per A-B pair), and the B Channel Bytes are ig-
nored when this function is enabled.
5.7.3 Single Volume Control (Snglvol)
Default = 0
0 - Disabled
1 - Enabled
Function:
The individual channel volume levels are independently controlled by their respective Volume Control Bytes
when this function is disabled. The volume on all channels is determined by the A1 Channel Volume Con-
trol Byte, and the other Volume Control Bytes are ignored when this function is enabled.
5.8
Ramp and Mute (address 08h)
7
SZC1
1
6
SZC0
0
5
RMP_UP
1
4
RMP_DN
1
3
PAMUTE
1
2
DAMUTE
1
1
MUTE_P1
0
0
MUTE_P0
0
5.8.1 Soft Ramp AND Zero Cross CONTROL (SZC)
Default = 10
00 - Immediate Change
01 - Zero Cross
10 - Soft Ramp
11 - Soft Ramp on Zero Crossings
Function:
Immediate Change
When Immediate Change is selected all level changes will take effect immediately in one step.
Zero Cross
Zero Cross Enable dictates that signal level changes, either by attenuation changes or muting, will occur
on a signal zero crossing to minimize audible artifacts. The requested level change will occur after a timeout
period between 512 and 1024 sample periods (10.7 ms to 21.3 ms at 48 kHz sample rate) if the signal does
not encounter a zero crossing. The zero cross function is independently monitored and implemented for
each channel.
Soft Ramp
Soft Ramp allows level changes, both muting and attenuation, to be implemented by incrementally ramping,
in 1/8 dB steps, from the current level to the new level at a rate of 1 dB per 8 left/right clock periods.

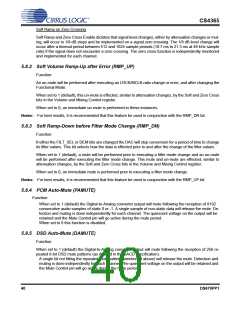

DS670PP1
39
