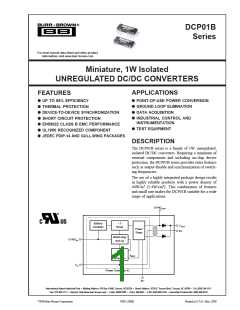

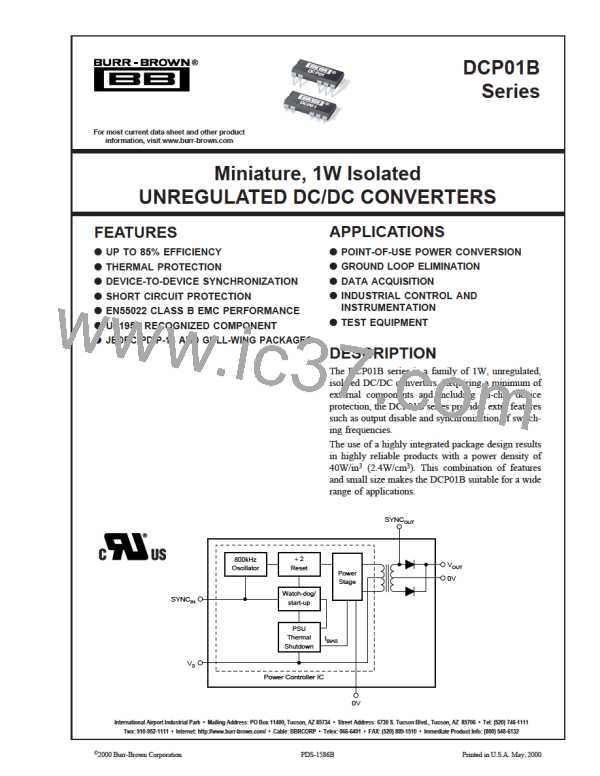

DCP
01
DCP
DCP01B
Series
01
For most current data sheet and other product
information, visit www.burr-brown.com
Miniature, 1W Isolated
UNREGULATED DC/DC CONVERTERS
FEATURES
q
UP TO 85% EFFICIENCY
q
THERMAL PROTECTION
q
DEVICE-TO-DEVICE SYNCHRONIZATION
q
SHORT CIRCUIT PROTECTION
q
EN55022 CLASS B EMC PERFORMANCE
q
UL1950 RECOGNIZED COMPONENT
q
JEDEC PDIP-14 AND GULL-WING PACKAGES
APPLICATIONS
q
POINT-OF-USE POWER CONVERSION
q
GROUND LOOP ELIMINATION
q
DATA ACQUISITION
q
INDUSTRIAL CONTROL AND
INSTRUMENTATION
q
TEST EQUIPMENT
DESCRIPTION
The DCP01B series is a family of 1W, unregulated,
isolated DC/DC converters. Requiring a minimum of
external components and including on-chip device
protection, the DCP01B series provides extra features
such as output disable and synchronization of switch-
ing frequencies.
The use of a highly integrated package design results
in highly reliable products with a power density of
40W/in
3
(2.4W/cm
3
). This combination of features
and small size makes the DCP01B suitable for a wide
range of applications.
SYNC
OUT
800kHz
Oscillator
÷
2
Reset
V
OUT
Power
Stage
0V
SYNC
IN
Watch-dog/
start-up
PSU
Thermal
Shutdown
V
S
Power Controller IC
I
BIAS
0V
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111
Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
®
©
2000 Burr-Brown Corporation
PDS-1586B
1
Printed in U.S.A.
DCP01B
May, 2000
