Secure Digital Memory Card Connectors
Features/Benefits
SERIES 5638
SD (Secure Digital) Memory Card technology is emerging as the next
industry standard for removable flash memory and input/output
devices. AVX has developed a complete range of top and bottom
mount connectors with and without ejector features for such appli-
cations as MP3 Players, PDAs, Cellular Phones, Digital Cameras,
Digital Camcorder, etc.
FEATURES
•
Conforms to SDA (Secure Digital Association)
requirements
•
•
•
•
•
•
•
•
Low profile 2.9mm height
Integral guide rails
Location boss’s and solder tabs
Normal and reverse keying
Card detection feature
Accepts both SD and Multimedia Cards
Tape and reel packaging
Mating cycles 10,000
ELECTRICAL CHARACTERISTICS
Current Rating:
Voltage Rating:
0.5A
5V
Insulation Resistance:
Contact Resistance:
DW Voltage:
1000MΩ min.
40mΩ max.
AC 500V
CLIMATIC CHARACTERISTICS
Operating Temperature:
-25ºC to +90ºC
PRODUCT SELECTION GUIDE
Keying
Normal
Reverse
Normal
Reverse
PCB Mounting
Height
2.9mm
2.9mm
2.9mm
2.9mm
Ejector Style
Push/Push Ejector
Push/Push Ejector
Without Ejector
Without Ejector
How To Order
Page
49
Top
14 5638 009 511 862
14 5638 109 511 862
14 5638 009 211 862

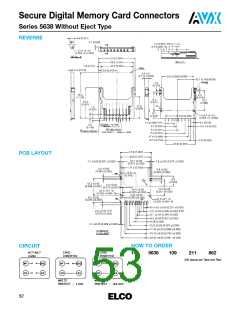

14 5638 109 211 862
Bottom
Top
50
51
Bottom
52
48
