Multi Media Card Connectors
Features/Benefits
SERIES 5038
Series 5038 is the MMC (Multi Media Card) Connector
developed to comply with the requirement of high-density
mounting in the market and designed especially for the slim
type Note PC and Portable equipment.
FEATURES
•
•
SMT, Single, Reverse Type
Correspond to the size of MMC Card
(32mm (1.260) x 24mm (0.945) x 1.4mm (0.055))
Both ejector and without ejector type available
Ejector type achieves easy insertion and separation
of card
•
•
•
•
Low-profile of as much as 2.6mm (0.102)
Adoption of guide rail type which prevents the direct
contact of card on the board for the low-profile design
High durability for 10,000 cycles insertion/separation
•
TECHNICAL SPECIFICATIONS
Number of Contacts:
Pitch:
Current Rating:
Voltage Rating:
DW Voltage:
7P
2.5mm (0.098)
AC0.5A Max. DC0.5A Pin
AC5V DC5V Pin
500V rms/min.
10,000
Mating Cycles
PRODUCT SELECTION GUIDE
Keying
Ejector Style
How To Order
Page
45
46
46
47
With ejector
Without ejector
Reflow pin type
Reflow pin type
SMT Type
10 5038 007 052 862
10 5038 007 252 862
10 5038 007 251 862
10 5038 007 353 862
10 5038 007 354 862
Reverse

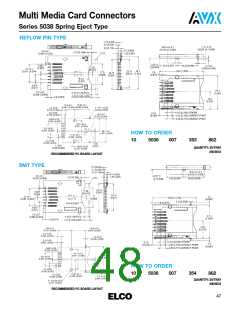

Push/Push ejector
Reflow pin type
SMT Type
47
44
