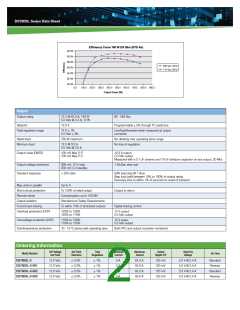

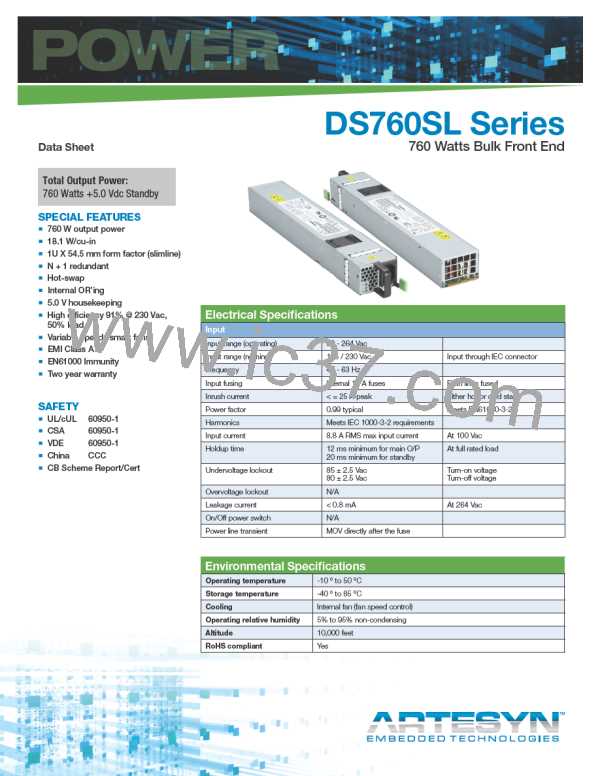

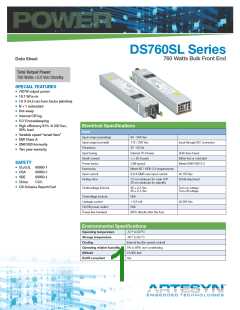

DS760SL Series Data Sheet
Efꢀciency Curve 760 W DS Slim (STD Air)
92.0%
90.0%
88.0%
86.0%
84.0%
82.0%
80.0%
230 Vac, 50Hz
115 Vac, 60Hz
0.0
100.0 200.0 300.0 400.0 500.0 600.0 700.0 800.0 900.0
Output Power [W]
Output
Output rating
12 V @ 62.3 A; 748 W
5.0 Vsb @ 2.4 A; 12 W
90 - 264 Vac
Setpoint
12.0 V
Programmable 5% through I2C serial bus
Total regulation range
12 V 1%
5.0 Vsb 3%
Line/load/transient when measured at output
connector
Rated load
760 W maximum
No derating over operating temp range
No loss of regulation
Minimum load
12 V @ 0.0 A
5.0 Vsb @ 0.0 A
Output noise (PARD)
100 mV Max P-P
100 mV Max P-P
12.0 V output
5.0 Vsb output
Measured with a 0.1 uF ceramic and 10 uF tantalum capacitor on any output; 20 Mhz
Output voltage overshoot
Transient response
300 mV; 12 V main
200 mV; 5.0 standby
1 A/uSec slew rate
< 250 uSec
50% load step @ 1 A/us
Step load valid between 10% to 100% of output rating
Recovery time to within 1% of set point at onset of transient
Max units in parallel
Short circuit protection
Remote sense
Up to 4
To 120% of rated output
Compensation up to 100 MV
Standard per Safety Requirements
To within 10% of all shared outputs
Output to return
Output isolation
Forced load sharing
Overload protection (OCP)
Digital sharing control
120% to 130%
120% to 170%
12 V output
5.0 Vsb output
Overvoltage protection (OVP)
Overtemperature protection
110% to 120%
110% to 125%
12 V outpu
5.0 Vsb output
10 - 15 ˚C above safe operating area
Both PFC and output converter monitored
Ordering Information
O/P Voltage
Set Point
Tolerance
Total
Regulation
Minimum
Current
Maximum
Current
Output
Ripple P/P
Stand-by
Voltage
Model Number
Air Flow
Set Point
DS760SL-3
12.0 Vdc
12.0 Vdc
12.0 Vdc
12.0 Vdc
0.2%
0.2%
0.2%
0.2%
1%
1%
1%
1%
0 A
0 A
0 A
0 A
62.3 A
50.0 A
62.3 A
50.0 A
120 mV
120 mV
120 mV
120 mV
5.0 V @ 2.4 A
5.0 V @ 2.4 A
3.3 V @ 2.4 A
3.3 V @ 2.4 A
Standard
Reverse
Standard
Reverse
DS760SL-3-001
DS760SL-3-002
DS760SL-3-003
