S U P P L E M E N T

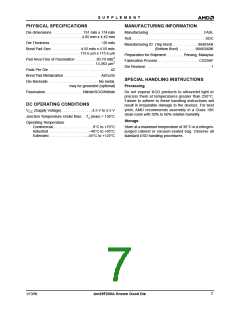

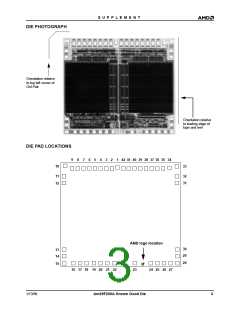

PHYSICAL SPECIFICATIONS
MANUFACTURING INFORMATION
Die dimensions . . . . . . . . . . . . . . 191 mils x 174 mils
. . . . . . . . . . . . . . . . . . . . . . . . . . .4.85 mm x 4.42 mm
Manufacturing . . . . . . . . . . . . . . . . . . . . . . . . . . FASL

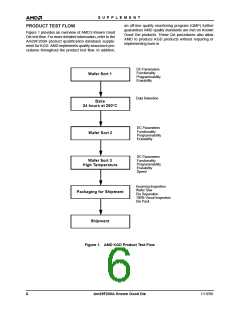

Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SDC
Die Thickness . . . . . . . . . . . . . . . . . . . . . . . . ~20 mils
Manufacturing ID (Top Boot) . . . . . . . . . . . . 98483AK
(Bottom Boot) . . . . . . . .98483ABK
Bond Pad Size . . . . . . . . . . . . . . 4.55 mils x 4.55 mils
. . . . . . . . . . . . . . . . . . . . . . . . . . 115.6 µm x 115.6 µm
Preparation for Shipment . . . . . . . . Penang, Malaysia
Fabrication Process . . . . . . . . . . . . . . . . . . . CS29AF
Die Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Pad Area Free of Passivation . . . . . . . . . .20.70 mils2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13,363 µm2

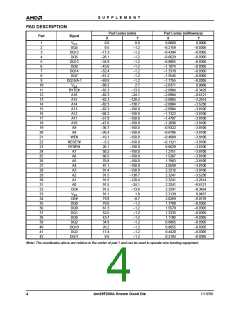

Pads Per Die . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Bond Pad Metalization . . . . . . . . . . . . . . . . . . Al/Cu/Si
SPECIAL HANDLING INSTRUCTIONS
Die Backside . . . . . . . . . . . . . . . . . . . . . . . . No metal,
may be grounded (optional)
Processing
Passivation. . . . . . . . . . . . . . . . . . Nitride/SOG/Nitride
Do not expose KGD products to ultraviolet light or
process them at temperatures greater than 250°C.
Failure to adhere to these handling instructions will
result in irreparable damage to the devices. For best
yield, AMD recommends assembly in a Class 10K
clean room with 30% to 60% relative humidity.
DC OPERATING CONDITIONS
VCC (Supply Voltage) . . . . . . . . . . . . . . .4.5 V to 5.5 V
Junction Temperature Under Bias . .TJ (max) = 130°C
Storage
Operating Temperature
Commercial . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Industrial . . . . . . . . . . . . . . . . . . . –40°C to +85°C
Extended . . . . . . . . . . . . . . . . . . –55°C to +125°C
Store at a maximum temperature of 30°C in a nitrogen-
purged cabinet or vacuum-sealed bag. Observe all
standard ESD handling procedures.
1/13/98

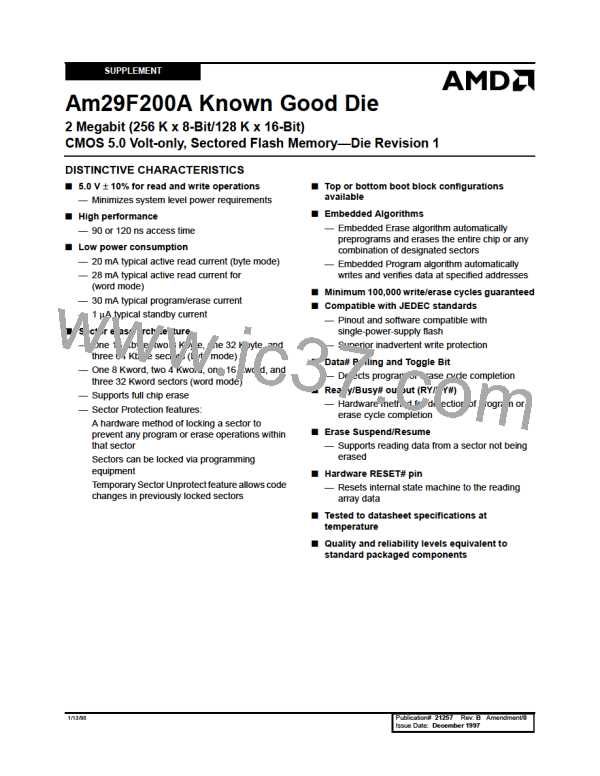

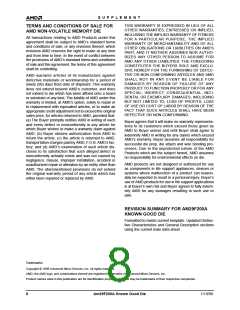

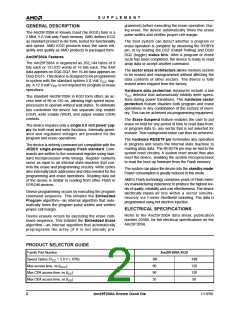

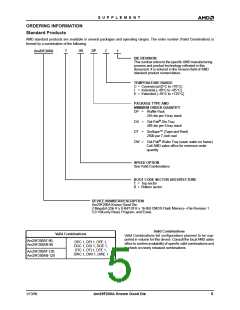

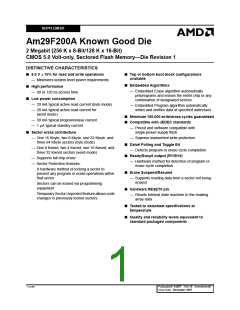

Am29F200A Known Good Die
7
AMD [ AMD ]
