FLEX 10K Embedded Programmable Logic Family Data Sheet

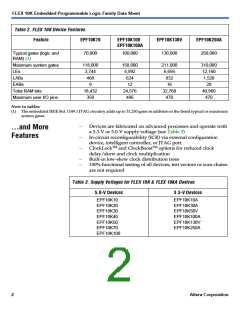

Notes to tables:
(1) Contact Altera Customer Marketing for up-to-date information on package availability.
(2) FLEX 10K and FLEX 10KA device package types include plastic J-lead chip carrier (PLCC), thin quad flat pack
(TQFP), plastic quad flat pack (PQFP), power quad flat pack (RQFP), ball-grid array (BGA), pin-grid array (PGA),
and FineLine BGATM packages.
(3) This option will be supported with a 256-pin FineLine BGA package. By using SameFrame pin migration, all
FineLine BGA packages are pin compatible. For example, a board can be designed to support both 256-pin and
484-pin FineLine BGA packages. The Quartus and MAX+PLUS II software automatically avoids conflicting pins
when future migration is set.

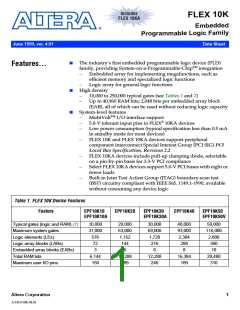

Altera’s FLEX 10K devices are the industry’s first embedded PLDs. Based
on reconfigurable CMOS SRAM elements, the Flexible Logic Element
MatriX (FLEX) architecture incorporates all features necessary to
implement common gate array megafunctions. With up to 250,000 gates,
the FLEX 10K family provides the density, speed, and features to integrate
entire systems, including multiple 32-bit buses, into a single device.
General
Description
FLEX 10K devices are reconfigurable, which allows 100% testing prior to
shipment. As a result, the designer is not required to generate test vectors
for fault coverage purposes. Additionally, the designer does not need to
manage inventories of different ASIC designs; FLEX 10K devices can be
configured on the board for the specific functionality required.
Table 6 shows FLEX 10K performance for some common designs. All
performance values were obtained with Synopsys DesignWare or LPM
functions. No special design technique was required to implement the
applications; the designer simply inferred or instantiated a function in a
Verilog HDL, VHDL, Altera Hardware Description Language (AHDL), or
schematic design file.
Table 6. FLEX 10K & FLEX 10KA Performance
Application
Resources
Used
Performance
Speed Grade
Units
LEs EABs
-1
-2
-3
-4
16-bit loadable
counter (1)
16
0
204
166
125
95
MHz
16-bit accumulator (1) 16
16-to-1 multiplexer (2) 10
0
0
1
204
4.2
166
5.8
125
6.0
95
7.0
84
MHz
ns
256 × 8 RAM read
0
172
145
108
MHz
cycle speed (3)
256 × 8 RAM write
0
1
106
89
68
63
MHz
cycle speed (3)
Notes:
(1) The speed grade of this application is limited because of clock high and low specifications.
(2) This application uses combinatorial inputs and outputs.
(3) This application uses registered inputs and outputs.
