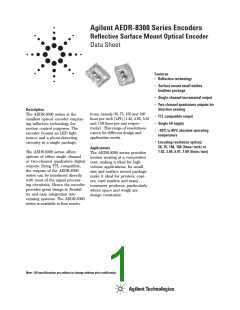

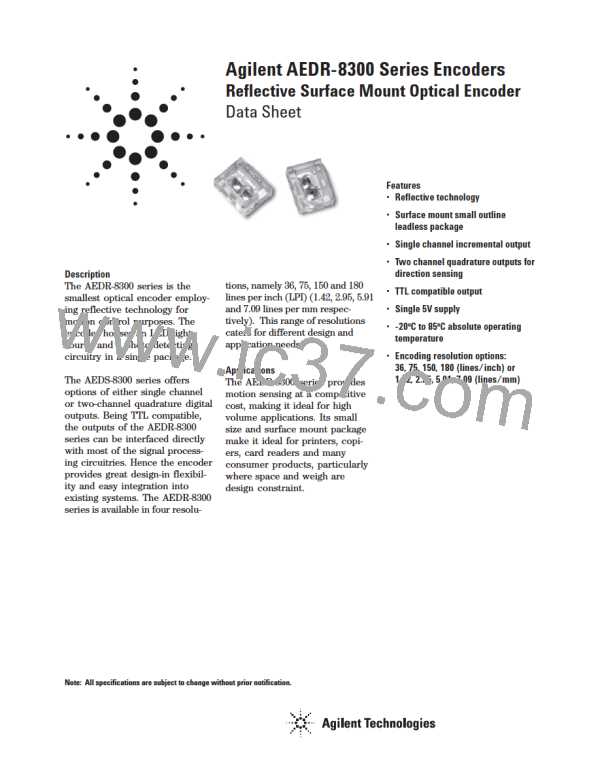

Agilent AEDR-8300 Series Encoders
Reflective Surface Mount Optical Encoder
Data Sheet
Features
• Reflective technology
• Surface mount small outline
leadless package
• Single channel incremental output
• Two channel quadrature outputs for
direction sensing
Description
tions, namely 36, 75, 150 and 180
lines per inch (LPI) (1.42, 2.95, 5.91
and 7.09 lines per mm respec-
tively). This range of resolutions
caters for different design and
application needs.
The AEDR-8300 series is the
smallest optical encoder employ-
ing reflective technology for
motion control purposes. The
encoder houses an LED light
source and a photo-detecting
circuitry in a single package.
• TTL compatible output
• Single 5V supply
• -20oC to 85oC absolute operating
temperature
• Encoding resolution options:
36, 75, 150, 180 (lines/inch) or
1.42, 2.95, 5.91, 7.09 (lines/mm)
Applications
The AEDS-8300 series offers
The AEDR-8300 series provides
motion sensing at a competitive
cost, making it ideal for high
volume applications. Its small
size and surface mount package
make it ideal for printers, copi-
ers, card readers and many
consumer products, particularly
where space and weigh are
design constraint.
options of either single channel
or two-channel quadrature digital
outputs. Being TTL compatible,
the outputs of the AEDR-8300
series can be interfaced directly
with most of the signal process-
ing circuitries. Hence the encoder
provides great design-in flexibil-
ity and easy integration into
existing systems. The AEDR-8300
series is available in four resolu-
Note: All specifications are subject to change without prior notification.
