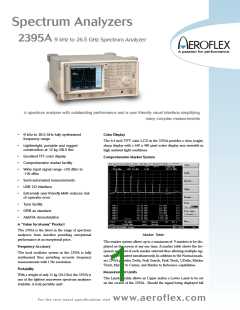

Spectrum Analyzers
2395A 9 kHz to 26.5 GHz Spectrum Analyzer
A spectrum analyzer with outstanding performance and a user friendly visual interface simplifying
maany complex measurements
•
•
9 kHz to 26.5 GHz fully synthesized
frequency range
Color Display
The 6.4 inch TFT color LCD in the 2395A provides a clear, bright,
sharp display with a 640 x 480 pixel active display area viewable in
high ambient light conditions.
Lightweight, portable and rugged
construction at 12 kg (26.5 lbs)
•
•
•
Excellent TFT color display
Comprehensive Marker System
Comprehensive marker facility
Wide input signal range +30 dBm to
-110 dBm
•
•
•
Semi-automated measurements
USB 2.0 Interface
Extremely user friendly MMI reduces risk
of operator error
•
•
•
Tune facility
GPIB as standard
AM/FM demodulation
A “Value for Money” Product
The 2395A is the latest in the range of spectrum
analyzers from Aeroflex providing exceptional
performance at an exceptional price.
Marker Table
The marker system allows up to a maximum of 9 markers to be dis-
played on the screen at any one time. A marker table shows the fre-
quency and level of each marker selected thus allowing multiple sig-
nals to be evaluated simultaneously. In addition to the Normal mark-
ers 2395A provides Delta, Peak Search, Peak Track, 1/Delta, Marker
Track, Marker to Center, and Marker to Reference capabilities.
Frequency Accuracy
The local oscillator system in the 2395A is fully
synthesized thus providing accurate frequency
measurements with 1 Hz resolution.
Portability
Measurement Limits
With a weight of only 12 kg (26.5 lbs) the 2395A is
one of the lightest microwave spectrum analyzers
available. A truly portable unit!
The Limits facility allows an Upper and/or a Lower Limit to be set
on the screen of the 2395A. Should the signal being displayed fall
For the very latest specifications visit www.aeroflex.com
