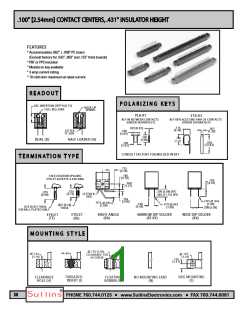

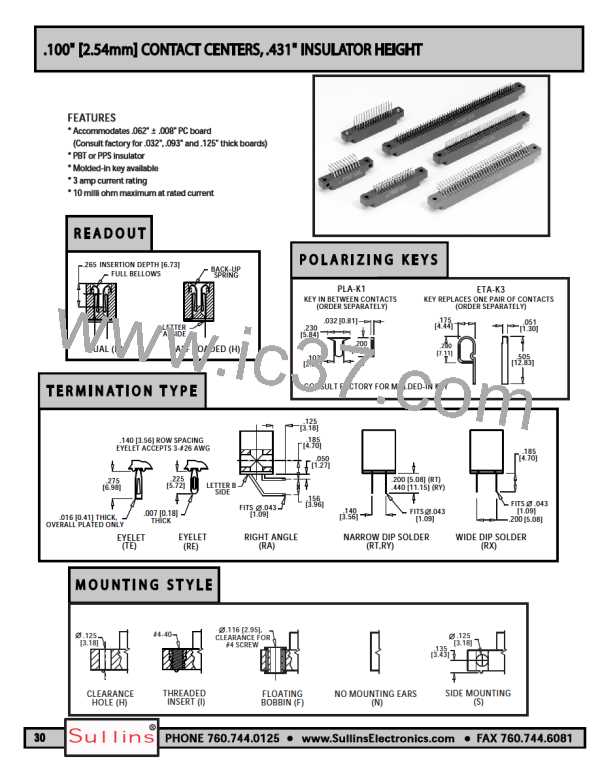

FEATURES
_
* Accommodates .062"
+
.008" PC board
(Consult factory for .032", .093" and .125" thick boards)
* PBT or PPS insulator
* Molded-in key available
* 3 amp current rating
* 10 milli ohm maximum at rated current
.265 INSERTION DEPTH [6.73]
FULL BELLOWS
BACK-UP
SPRING
PLA-K1
KEY IN BETWEEN CONTACTS
(ORDER SEPARATELY)
LETTER
'A' SIDE
.230
[5.84]
.103
[2.62]
.032 [0.81]
.200
[5.08]
ETA-K3
KEY REPLACES ONE PAIR OF CONTACTS
(ORDER SEPARATELY)
.175
[4.44]
.280
[7.11]
.051
[1.30]
DUAL (D)
HALF LOADED (H)
.505
[12.83]
CONSULT FACTORY FOR MOLDED-IN KEY
.125
[3.18]
.140 [3.56] ROW SPACING
EYELET ACCEPTS 3-#26 AWG
.185
[4.70]
.050
[1.27]
.275
[6.98]
.225
[5.72]
LETTER B
SIDE
FITS .043
[1.09]
.200 [5.08] (RT)
.440 [11.15] (RY)
.156
[3.96]
.140
[3.56]
FITS .043
[1.09]
FITS .043
[1.09]
.200
[5.08]
.185
[4.70]
.016 [0.41] THICK,
OVERALL PLATED ONLY
.007 [0.18]
THICK
EYELET
(TE)
EYELET
(RE)
RIGHT ANGLE
(RA)
NARROW DIP SOLDER
(RT,RY)
WIDE DIP SOLDER
(RX)
.125
[3.18]
#4-40
.116 [2.95],
CLEARANCE FOR
#4 SCREW
.135
[3.43]
.125
[3.18]
CLEARANCE
HOLE (H)
THREADED
INSERT (I)
FLOATING
BOBBIN (F)
NO MOUNTING EARS
(N)
SIDE MOUNTING
(S)
30
s›’’Œ”™
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081
