SigmaTel, Inc.
Data Sheet
STAC9721
2 mono sources
4 stereo
sources
mono
Power
stereo
Management
PCM out DACs
48Kss
LNLVL_OUT
DAC
DAC
Digital
Interface
LINE_OUT
MIXER
AC-link
MONO_OUT
SYNC
BIT_CLK
SDATA_OUT
SDATA_IN
Analog mixing
and
Registers
64 x 16 bits
PCM in ADCs
ADC
MIC1
MIC2
Mic
M
U
X
Boost
Gain control
RESET
0/20 dB
ADC
48Kss

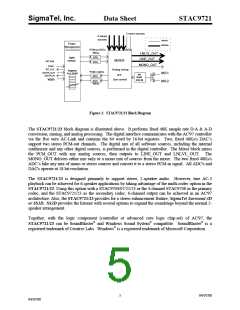

. STAC9721/23 Block Diagram
Figure 2
The STAC9721/23 block diagram is illustrated above. It performs fixed 48K sample rate D-A & A-D
conversion, mixing, and analog processing. The digital interface communicates with the AC'97 controller
via the five wire AC-Link and contains the 64 word by 16-bit registers. Two, fixed 48Ks/s DAC’s
support two stereo PCM-out channels. The digital mix of all software sources, including the internal
synthesizer and any other digital sources, is performed in the digital controller. The Mixer block mixes
the PCM_OUT with any analog sources, then outputs to LINE_OUT and LNLVL_OUT. The
MONO_OUT delivers either mic only or a mono mix of sources from the mixer. The two fixed 48Ks/s
ADC’s take any mix of mono or stereo sources and convert it to a stereo PCM-in signal. All ADC's and
DAC's operate at 18-bit resolution.
The STAC9721/23 is designed primarily to support stereo, 2-speaker audio. However, true AC-3
playback can be achieved for 6-speaker applications by taking advantage of the multi-codec option in the
STAC9721/23. Using this option with a STAC9704/07/21/23 or the 4-channel STAC9708 as the primary
codec, and the STAC9721/23 as the secondary codec, 6-channel output can be achieved in an AC'97
architecture. Also, the STAC9721/23 provides for a stereo enhancement feature, SigmaTel Surround 3D
or SS3D. SS3D provides the listener with several options to expand the soundstage beyond the normal 2-
speaker arrangement.
Together, with the logic component (controller or advanced core logic chip-set) of AC'97, the
STAC9721/23 can be SoundBlaster and Windows Sound System compatible. SoundBlaster is a
registered trademark of Creative Labs. Windows is a registered trademark of Microsoft Corporation.
5
04/07/00
