"Ei-RC" - Electronic tubes factory
ECC82/12AU7
Data Sheet
Page 3 of 4

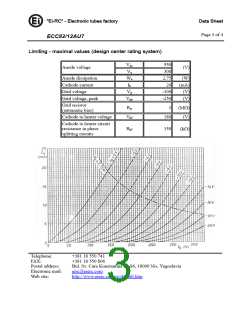

Limiting - maximal values (design center rating system)
Vao
Va
Wa
Ik
Vg
Vgp
550
300
2,75
20
-100
-250
Anode voltage
(V)
Anode dissipation
Cathode current
Grid voltage
(W)
(mA)
(V)
Grid voltage, peak
(V)
Grid resistor
Rg
1
(MΩ)
(automatic bias)
Cathode to heater voltage
Vkf
180
(V)
Cathode to heater circuit
resistance in phase
splitting circuits
Rkf
150
(kΩ)
