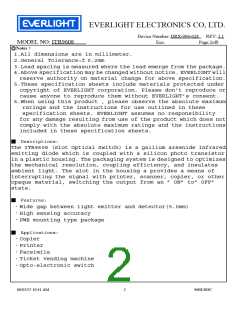

EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-096-028 REV: 1.1
MODEL NO: ITR9608
Ecn:
Page:2of8
◎Notes：

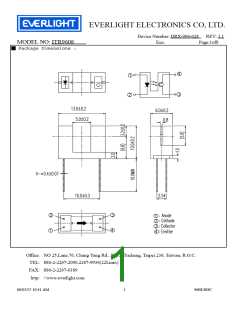

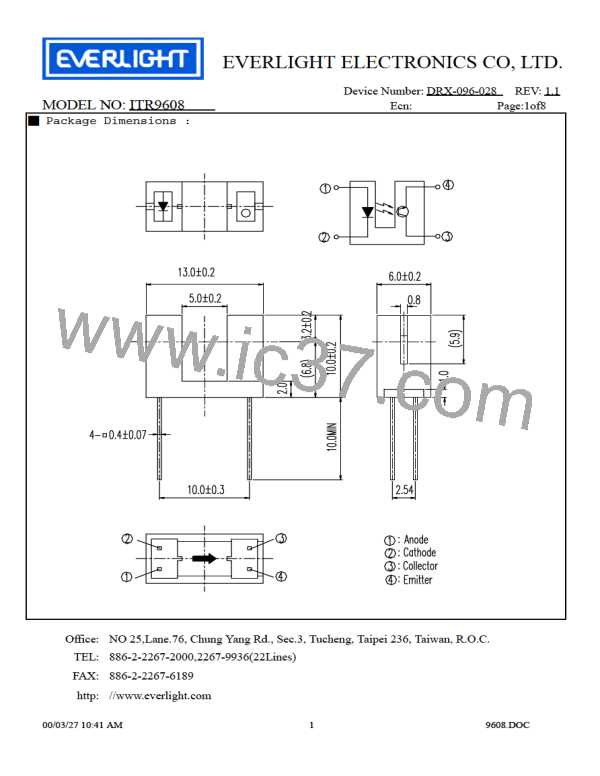

1.All dimensions are in millimeter.
2.General Tolerance:± 0.2mm
3.Lead spacing is measured where the lead emerge from the package.
4.Abovespecificationmaybechangedwithoutnotice.EVERLIGHTwill
reserve authority on material change for above specification.
5.These specification sheets include materials protected under
copyright of EVERLIGHT corporation. Please don’t reproduce or
cause anyone to reproduce them without EVERLIGHT’s consent.
6.When using this product , please observe the absolute maximum
ratings and the instructions for use outlined in these
specification sheets. EVERLIGHT assumes no responsibility
for any damage resulting from use of the product which does not
comply with the absolute maximum ratings and the instructions
included in these specification sheets.
■ Descriptions:
The ITR9608 (Slot Optical Switch) is a gallium arsenide infrared
emitting diode which is coupled with a silicon photo transistor
in a plastic housing. The packaging system is designed to optimizes
the mechanical resolution, coupling efficiency, and insulates
ambient light. The slot in the housing a provides a means of
interrupting the signal with printer, scanner, copier, or other
opaque material, switching the output from an ” ON” to” OFF”
state.
■ Features:
．Wide gap between light emitter and detector(5.0mm)
．High sensing accuracy
．PWB mounting type package
■ Applications:
．Copier
．Printer
．Facsimile
．Ticket vending machine
．Opto-electronic switch
00/03/27 10:41 AM
2
9608.DOC
