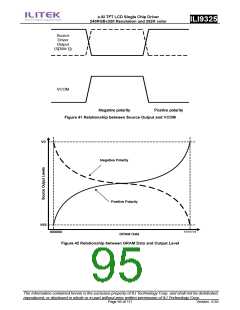

12.Gamma Correction
ILI9325 incorporates the γ-correction function to display 262,144 colors for the LCD panel. The γ-correction is
performed with 3 groups of registers determining eight reference grayscale levels, which are gradient
adjustment, amplitude adjustment and fine-adjustment registers for positive and negative polarities, to make
ILI9325 available with liquid crystal panels of various characteristics.
Gradient
Adjustment
Register
Amplitude
Adjustment
Register
Fine Adjustment Registers (6 x 3 bits)
PRP/N0
PRP/N1
PKP/N5 PKP/N4 PKP/N3 PKP/N2 PKP/N1 PKP/N0
VRP/N0
VRP/N1
VREG1OUT
VgP0/VgN0
VgP1/VgN1
V0
V1
V2
V7
V8
VgP8/VgN8
VgP20/VgN20
VgP43/VgN43
VgP55/VgN55
V20
V43
V55
V56
V61
V62
VgP62/VgN62
VgP63/VgN63
V63
VGS
Figure 38 Grayscale Voltage Generation
