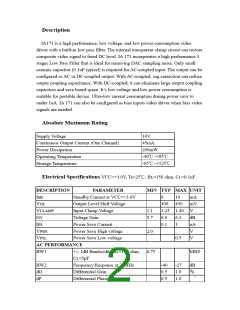

Description
IA171 is a high performance, low voltage, and low power consumption video
driver with a built-in low pass filter. The internal transparent clamp circuit can restore
composite video signal to fixed DC level. IA 171 incorporates a high performance 4
stages Low Pass Filter that is ideal for removing DAC sampling noise. Only small
ceramic capacitor (0.1uF typical) is required for AC-coupled input. The output can be
configured as AC or DC-coupled output. With AC-coupled, sag correction can reduce
output coupling capacitance. With DC-coupled, it can eliminate large output coupling
capacitors and save board space. It’s low voltage and low power consumption is
suitable for portable device. Ultra-low current consumption during power save to
under 1uA. IA 171 can also be configured as bias inputs video driver when bias video
signals are needed.
Absolute Maximum Rating
Supply Voltage
10V
Continuous Output Current (One Channel)
Power Dissipation
45mA
200mW
-40℃~+85℃
-65℃~+125℃
Operating Temperature
Storage Temperature
Electrical Specifications VCC=+3.0V, Ta=25℃, RL=150 ohm, CL=0.1uF
DESCRIPTION
PARAMETER
Standby Current at VCC=+3.0V
Output Level Shift Voltage
Input Clamp Voltage
MIN TYP MAX UNIT
10 mA
300 450 mV
ISB
6
V
V
G
OL
CLAMP
V
1.1
5.7
1.25 1.40
V
Voltage Gain
6.0
0.1
6.3
1
dB
uA
V
IPS
Power Save Current
V
PSH
PSL
Power Save High voltage
Power Save Low voltage
2.0
V
0.5
V
AC PERFORMANCE
BW1
+/- 1dB Bandwidth, R
=5pF
L=150 ohm, 6.75
MHZ
C
L
BW2
dG
Frequency Response at 27MHz
Differential Gain
-40
0.5
0.5
-27
1.0
1.0
dB
％
°
dP
Differential Phase
