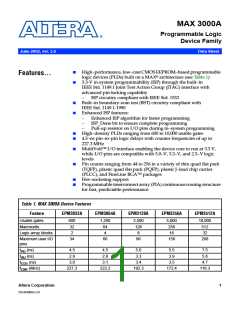

MAX 3000A
®
Programmable Logic
Device Family
Data Sheet
June 2002, ver. 3.0
Features...
High–performance, low–cost CMOS EEPROM–based programmable
logic devices (PLDs) built on a MAX
®
architecture (see
Table 1)
3.3-V in-system programmability (ISP) through the built–in
IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with
advanced pin-locking capability
ISP circuitry compliant with IEEE Std. 1532
Built–in boundary-scan test (BST) circuitry compliant with
IEEE Std. 1149.1-1990
Enhanced ISP features:
Enhanced ISP algorithm for faster programming
ISP_Done bit to ensure complete programming
Pull-up resistor on I/O pins during in–system programming
High–density PLDs ranging from 600 to 10,000 usable gates
4.5–ns pin–to–pin logic delays with counter frequencies of up to
227.3 MHz
MultiVolt
TM
I/O interface enabling the device core to run at 3.3 V,
while I/O pins are compatible with 5.0–V, 3.3–V, and 2.5–V logic
levels
Pin counts ranging from 44 to 256 in a variety of thin quad flat pack
(TQFP), plastic quad flat pack (PQFP), plastic J–lead chip carrier
(PLCC), and FineLine BGA
TM
packages
Hot–socketing support
Programmable interconnect array (PIA) continuous routing structure
for fast, predictable performance
Table 1. MAX 3000A Device Features
Feature
Usable gates
Macrocells
Logic array blocks
Maximum user I/O
pins
t
PD
(ns)
t
SU
(ns)
t
CO1
(ns)
f
CNT
(MHz)
EPM3032A
600
32
2
34
4.5
2.9
3.0
227.3
EPM3064A
1,250
64
4
66
4.5
2.8
3.1
222.2
EPM3128A
2,500
128
8
96
5.0
3.3
3.4
192.3
EPM3256A
5,000
256
16
158
5.5
3.9
3.5
172.4
EPM3512A
10,000
512
32
208
7.5
5.6
4.7
116.3
Altera Corporation
DS-M3000A-3.0
1
