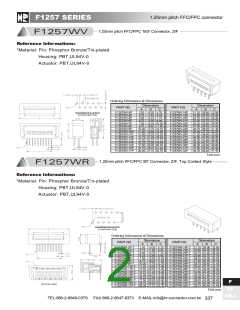

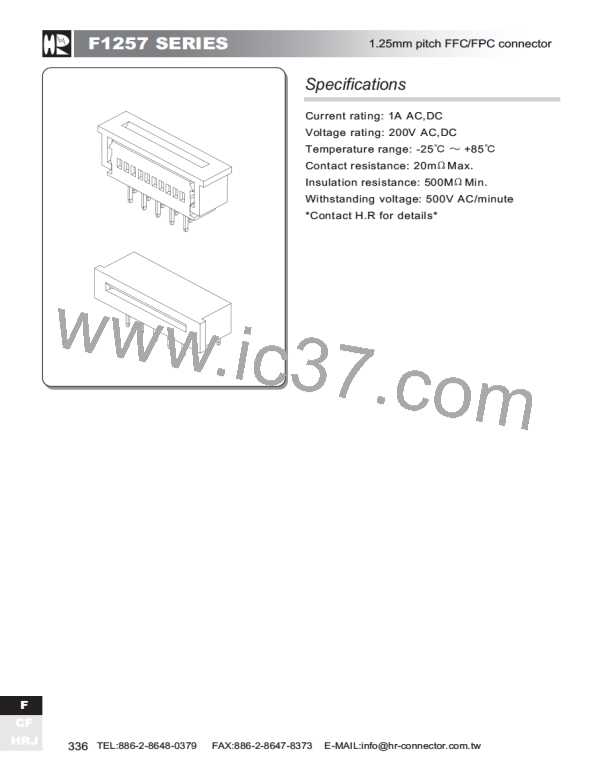

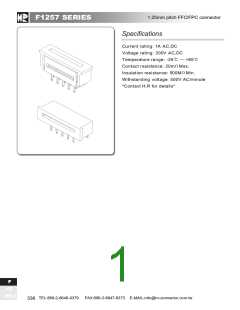

1.25mm pitch FFC/FPC connector
F1257 SERIES
o
1.25mm pitch FFC/FPC 180 Connector, ZIF
F1257WV
Reference Informations:
*Material: Pin: Phosphor Bronze/Tin-plated
Housing: PBT,UL94V-0
Actuator: PBT,UL94V-0
Ordering Information & Dimensions:
Dimensions
PART NO.
Dimensions
PART NO.
B
C
B
C
A
A
SUGGESTED PCB LAYOUT
(COMPONENT SIDE)
F1257WV-3P
F1257WV-4P
F1257WV-5P
F1257WV-6P
F1257WV-7P
F1257WV-8P
F1257WV-9P
F1257WV-10P
F1257WV-11P
F1257WV-12P
F1257WV-13P
F1257WV-14P
F1257WV-15P
F1257WV-16P
F1257WV-17P
2.50 10.20 5.20
3.75 11.45 6.45
5.00 12.70 7.70
6.25 13.95 8.95
7.50 15.20 10.20
8.75 16.45 11.45
10.00 17.70 12.70
11.25 18.95 13.95
12.50 20.20 15.20
13.75 21.45 16.45
15.00 22.70 17.70
16.25 23.95 18.95
17.50 25.20 20.20
18.75 26.45 21.45
20.00 27.70 22.70
F1257WV-18P
F1257WV-19P
F1257WV-20P
F1257WV-21P
F1257WV-22P
F1257WV-23P
F1257WV-24P
F1257WV-25P
F1257WV-26P
F1257WV-27P
F1257WV-28P
F1257WV-29P
F1257WV-30P
F1257WV-31P
F1257WV-32P
21.25 28.95 23.95
22.50 30.20 25.20
23.75 31.45 26.45
25.00 32.70 27.70
26.25 33.95 28.95
27.50 35.20 30.20
28.75 36.45 31.45
30.00 37.70 32.70
31.25 38.95 33.95
32.50 40.20 35.20
33.75 41.45 36.45
35.00 42.70 37.70
36.25 43.95 38.95
37.50 45.20 40.20
38.75 46.45 41.45
Unit:mm
o
1.25mm pitch FFC/FPC 90 Connector, ZIF, Top Contact Style
F1257WR
Reference Informations:
*Material: Pin: Phosphor Bronze/Tin-plated
Housing: PBT,UL94V-0
Actuator: PBT,UL94V-0
SUGGESTED PCB LAYOUT
(COMPONENT SIDE)
Ordering Information & Dimensions:
Dimensions
Dimensions
PART NO.
PART NO.
B
C
B
C
A
A
F1257WR-3P-T
F1257WR-4P-T
F1257WR-5P-T
F1257WR-6P-T
F1257WR-7P-T
F1257WR-8P-T
F1257WR-9P-T
2.50 10.20 5.20
3.75 11.45 6.45
5.00 12.70 7.70
6.25 13.95 8.95
7.50 15.20 10.20
8.75 16.45 11.45
10.00 17.70 12.70
F1257WR-18P-T 21.25 28.95 23.95
F1257WR-19P-T 22.50 30.20 25.20
F1257WR-20P-T 23.75 31.45 26.45
F1257WR-21P-T 25.00 32.70 27.70
F1257WR-22P-T 26.25 33.95 28.95
F1257WR-23P-T 27.50 35.20 30.20
F1257WR-24P-T 28.75 36.45 31.45
F1257WR-25P-T 30.00 37.70 32.70
F1257WR-26P-T 31.25 38.95 33.95
F1257WR-27P-T 32.50 40.20 35.20
F1257WR-28P-T 33.75 41.45 36.45
F1257WR-29P-T 35.00 42.70 37.70
F1257WR-30P-T 36.25 43.95 38.95
F1257WR-31P-T 37.50 45.20 40.20
F1257WR-32P-T 38.75 46.45 41.45
F1257WR-10P-T 11.25 18.95 13.95
F1257WR-11P-T 12.50 20.20 15.20
F1257WR-12P-T 13.75 21.45 16.45
F1257WR-13P-T 15.00 22.70 17.70
F1257WR-14P-T 16.25 23.95 18.95
F1257WR-15P-T 17.50 25.20 20.20
F1257WR-16P-T 18.75 26.45 21.45
F1257WR-17P-T 20.00 27.70 22.70
F
(BOTTOM VIEW)
CF
Unit:mm
