XL1507
3A 150KHz 40V Buck DC to DC Converter
Test Circuit and Layout guidelines

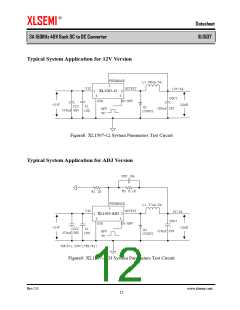

Figure5. Standard Test Circuits and Layout Guides
Select R1 to be approximately 1K, use a 1% resistor for best stability.
C1 and CFF are optional; in order to increase stability and reduce the input power line noise, CIN
and C1 must be placed near to PIN1 and PIN3;
For output voltages greater than approximately 10V, an additional capacitor CFF is required. The
compensation capacitor is typically between 100 pf and 33 nf, and is wired in parallel with the
output voltage setting resistor, R2. It provides additional stability for high output voltage, low
input-output voltages, and/or very low ESR output capacitors, such as solid tantalum capacitors.
CFF=1/(31*1000*R2); This capacitor type can be ceramic, plastic, silver mica, etc. (Because of
the unstable characteristics of ceramic capacitors made with Z5U material, they are not
recommended.)
