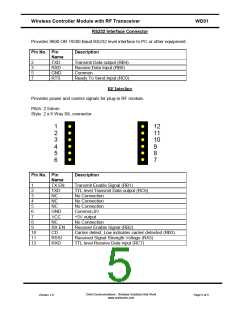

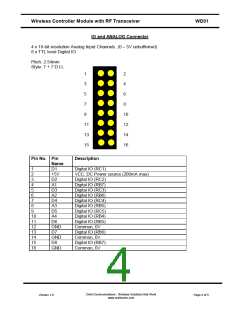

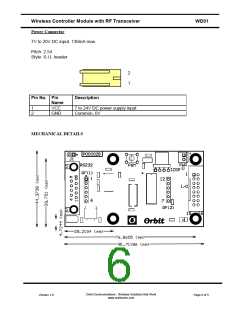

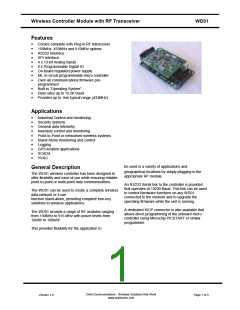

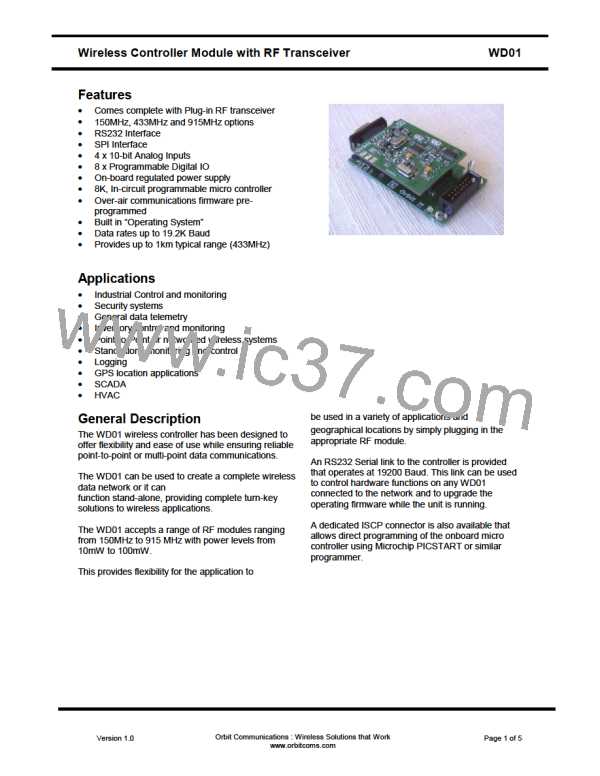

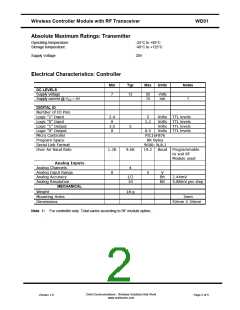

Wireless Controller Module with RF Transceiver
RS232 Interface Connector
WD01
Provides 9600 OR 19200 Baud RS232 level interface to PC or other equipment.
Pin No. Pin
Name
TXD
Description
2
3
5
7
Transmit Data output (RB4)
Receive Data Input (RB0)
Common
RXD
GND
RTS
Ready To Send Input (RC0)
RF Interface
Provides power and control signals for plug-in RF module.
Pitch: 2.54mm
Style: 2 x 6 Way SIL connector
1
2
3
4
5
6
12
11
10
9
8
7
Pin No. Pin
Name
Description
1
2
3
TX EN
TXD
NC
Transmit Enable Signal (RB1)
TTL level Transmit Data output (RC6)
No Connection
4
NC
No Connection
5
NC
No Connection
6
7
8
GND
VCC
NC
Common,0V
+5V output
No Connection
9
RX EN
CD
RSSI
RXD
Receiver Enable Signal (RB2)
10
11
12
Carrier detect, Low indicates carrier detected (RB3)
Received Signal Strength Voltage (RA5)
TTL level Receive Data input (RC7)
