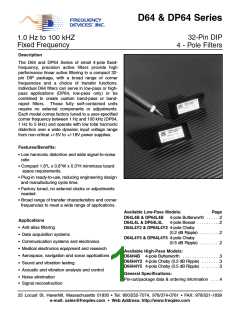

D64 & DP64 Series
Pin-Out and Package Data
Ordering Information
Specification
(25°C and Vs 15 Vdc)
Analog Input Characteristics1
0.80
Impedance
10 kΩ min.
Voltage Range
Max. Safe Voltage
10 Vpeak
Vs
Side View
All dimensions are in inches
All case dimensions 0.01"
0.025 dia.
Analog Output Characteristics
1.80
Impedance(Closed Loop)
1 Ω typ.
10 Ω max.
10 V
2 mA
02 mV typ.
0.30
Front View
Linear Operating Range
Maximum Current2
Offset Voltage3
0.15 (min)
0.80
0.70
4
10 mV max.
OUT
+VS
-VS
OS
Offset Temp. Coeff.
50 µV / °C
Bottom View
GND
IN
Power Supply (±±V
Rated Voltage
0.10
0.00
15 Vdc
Operating Range
Maximum Safe Voltage
Quiescent Current D64
5 to 18 Vdc
18 Vdc
12.5 mA typ.
20 mA max.
Filter Mounting Assembly-See FMA-01A
DP64
3.5 mA typ.
5 mA max.
Temperature
Operating
Storage
Ordering Information
-
0 to + 70 °C
- 25 to + 85 °C
Filter Type
Transfer Function
L - Low Pass
H - High Pass
B - Butterworth
L - Bessel
Notes:
1. Input and output signal voltage referenced to supply
common.
Y2 - 0.2 Ripple Chebychev
Y5 - 0.5 Ripple Chebychev
2. Output is short circuit protected to common.
DO NOT CONNECT TO Vs.
3. Adjustable to zero.
DC Offset Adjustment
D64L4B-849 Hz
Vs
Do not connect
if trim is not
required.
Power Level
- 3 dB Corner Frequency5
D – Standard Power
DP – Low Power
e.g., 849 Hz
2.50 kHz
20 k Ω
OS
(Cermet)
33.3 kHz
4. Units operate with or with out offset pin connected.
5. How to Specify Corner Frequency:
Corner frequencies are specified by attaching a three digit frequency designator to the basic
model number. Corner frequencies can range from 1.00 Hz to 100 kHz.
- Vs
We hope the information given here will be helpful. The information is based on data and our best knowledge, and we consider the information to be true and accurate. Please read all statements,
recommendations or suggestions herein in conjunction with our conditions of sale which apply to all goods supplied by us. We assume no responsibility for the use of these statements,
recommendations or suggestions, nor do we intend them as a recommendation for any use which would infringe any patent or copyright.
IN-00D64-01
4
25 Locust St, Haverhill, Massachusetts 01830 • Tel: 800/252-7074, 978/374-0761 • FAX: 978/521-1839
e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com
