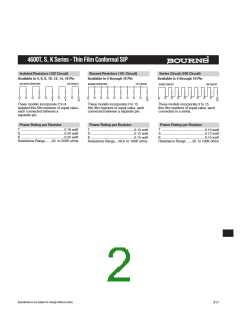

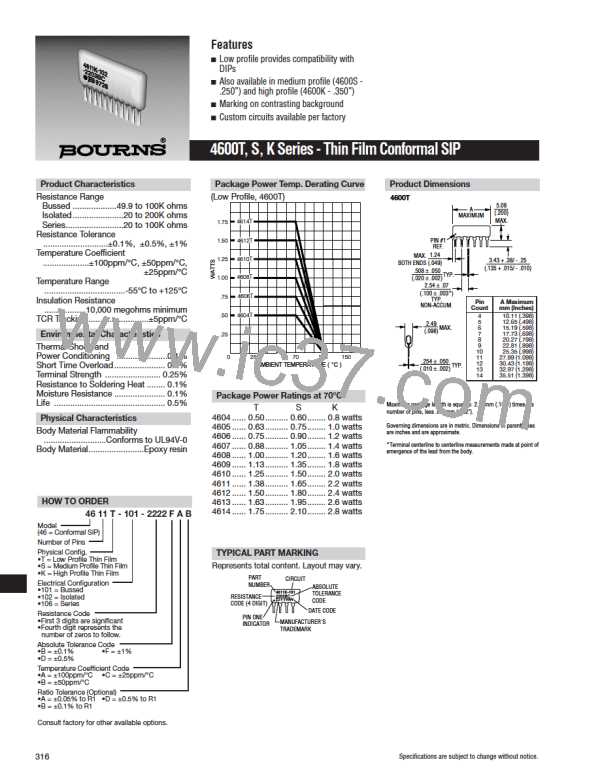

4600T, S, K Series - Thin Film Conformal SIP
Isolated Resistors (102 Circuit)
Bussed Resistors (101 Circuit)
Available in 4 through 16 Pin
Series Circuit (106 Circuit)
Available in 4 through 16 Pin
Available in 4, 6, 8, 10, 12, 14, 16 Pin
ISOLATED RESISTORS
102 CIRCUIT
BUSSED RESISTORS
101 CIRCUIT
SERIES CIRCUIT
106 CIRCUIT
1
6
8
16
1
16
1
16
These models incorporate 2 to 8
These models incorporate 3 to 15
thin-film resistors of equal value, each
connected between a separate pin.
These models incorporate 3 to 15
thin-film resistors of equal value, each
connected in a series.
isolated thin-film resistors of equal value,
each connected between a
separate pin.
Power Rating per Resistor
Power Rating per Resistor
Power Rating per Resistor
T ...............................................0.18 watt
S ...............................................0.20 watt
K ...............................................0.25 watt
Resistance Range… ...20 to 200K ohms
T ...............................................0.10 watt
S ...............................................0.12 watt
K ...............................................0.15 watt
Resistance Range…49.9 to 100K ohms
T ...............................................0.10 watt
S ...............................................0.12 watt
K ...............................................0.15 watt
Resistance Range.......20 to 100K ohms
Specifications are subject to change without notice.
