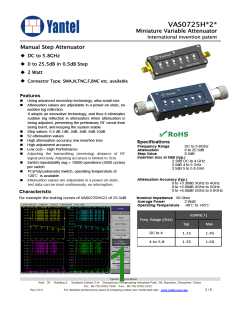

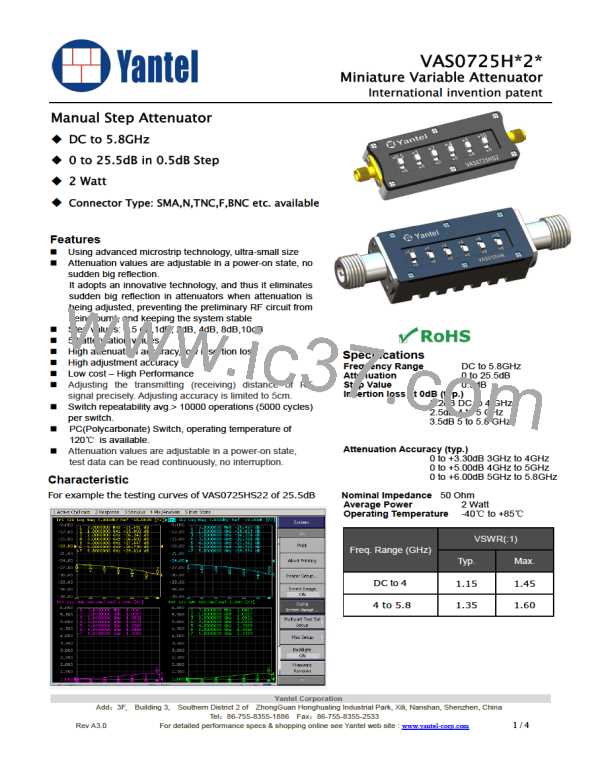

VAS0725H*2*
Miniature Variable Attenuator
International invention patent

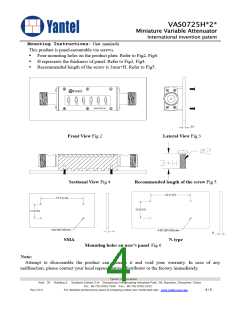

Mounting Instructions:Unit: mm(inch)
This product is panel-mountable via screws.
Ÿ
Ÿ
Ÿ
Four mounting holes on the product plate. Refer to Fig2, Fig6.
H represents the thickness of panel. Refer to Fig3, Fig4.
Recommended length of the screw is 3mm+H. Refer to Fig5.
Front View Fig 2
Lateral View Fig 3
Sectional View Fig 4
Recommended length of the screw Fig 5

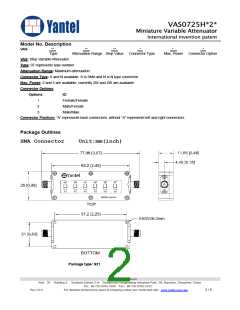

SMA

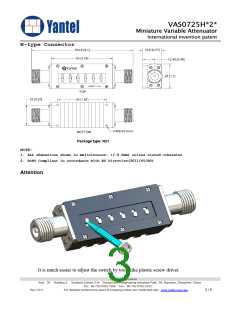

N-type
Mounting holes on user’s panel Fig 6
Note:
Attempt to disassemble the product can damage it and void your warranty. In case of any
malfunction, please contact your local representative, distributor or the factory immediately.
Yantel Corporation
Add：3F, Building 3, Southern District 2 of ZhongGuan Honghualing Industrial Park, Xili, Nanshan, Shenzhen, China
Tel：86-755-8355-1886 Fax：86-755-8355-2533
Rev A3.0
For detailed performance specs & shopping online see Yantel web site : www.yantel-corp.com
