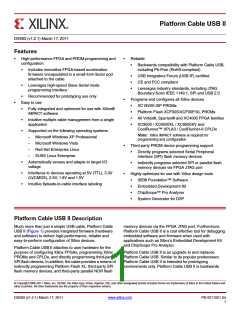

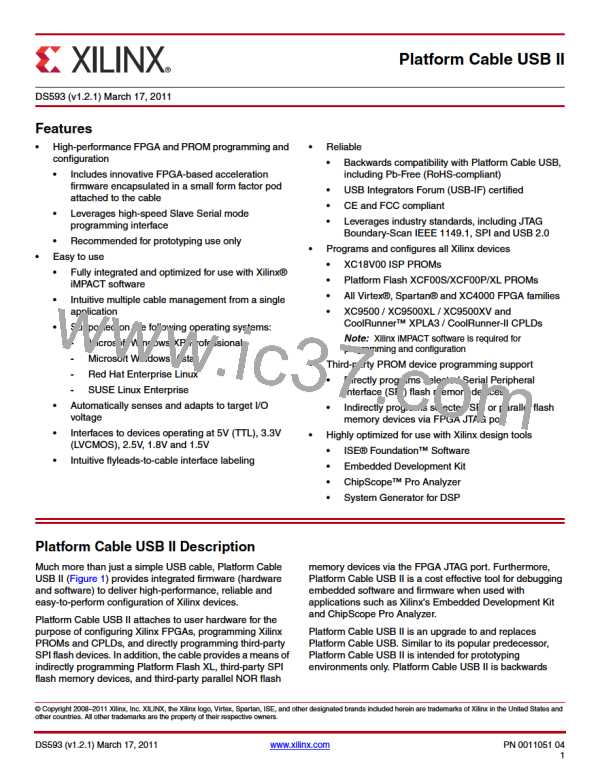

Platform Cable USB II
Compatible with Platform Cable USB and is supported by all Xilinx design tools that support Platform Cable USB.
Platform Cable USB II attaches to the USB port on a desktop or laptop PC using an off-the-shelf Hi-Speed USB A–B cable.

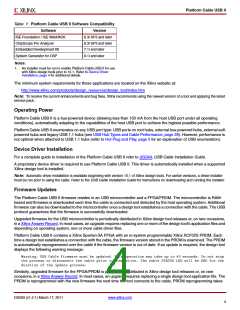

The cable derives all operating power from the hub port controller — no external power supply is required.
Note: Sustained data transfer rates in a Hi-Speed USB environment vary according to the number of USB devices sharing the hub
bandwidth. Native signaling rate (480 MHz) is not directly correlated to application throughput.

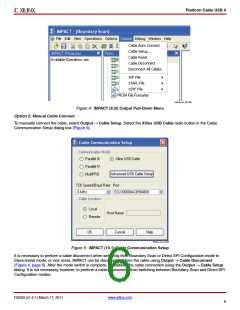

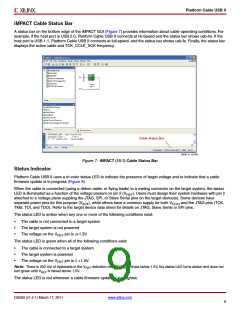

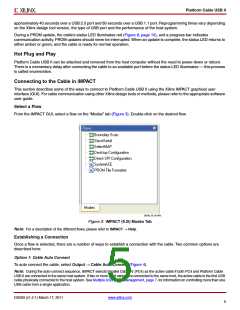

Device configuration and programming operations using Platform Cable USB II are supported by Xilinx iMPACT download
software using Boundary-Scan (IEEE 1149.1 / IEEE 1532), Slave Serial mode, or serial peripheral interface (SPI).
Note: iMPACT is bundled with Foundation ISE software and WebPACK™ ISE software.
In addition, Platform Cable USB II is optimized for use with Xilinx Embedded Development Kit, ChipScope Pro Analyzer and
System Generator for DSP. When used with these software tools, the cable provides a connection to embedded target

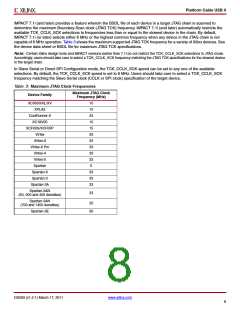

systems for hardware configuration, software download, and real-time debug and verification. Target clock speeds are
selectable from 750 kHz to 24 MHz.

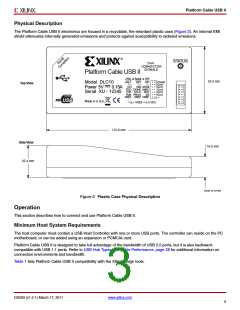

Platform Cable USB II attaches to target systems using a 14-conductor ribbon cable designed for high-bandwidth data
transfers. An optional adapter for attaching a flying lead set is included for backward compatibility with target systems not
using a ribbon cable connector.
X-Ref Target - Figure 1
DS593_01_021408

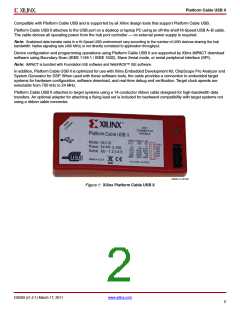

Figure 1: Xilinx Platform Cable USB II
