Gas DischarGe Tubes
2 & 3 Electrode Surface Mount Series
Part Numbering System
Exampleꢀpartꢀnumber:
WPGT - 3SSM 230 D TR
(1)
(2)
(3)
(4) (5)
(1)
(2)
World Products Gas Discharge Tubes
Series Code

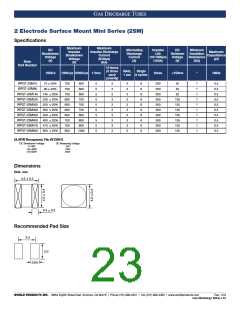

2SM = 2 Electrode Surface Mount Mini Series

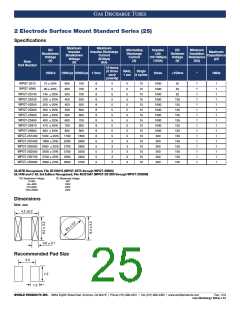

2S = 2 Electrode Surface Mount Standard Series

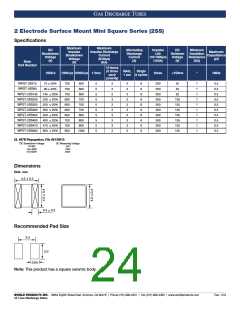

2SS = 2 Electrode Surface Mount Mini Square Series

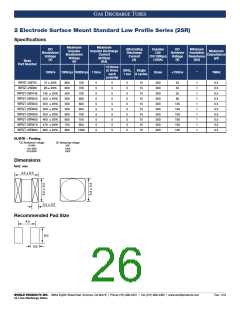

2SR = 2 Electrode Surface Mount Standard Low Profile Series
3216* = 2 Electrode Surface Mount Chip Series
4532* = 2 Electrode Surface Mount Chip Series
3SM = 3 Electrode Surface Mount Mini Series
3SSM = 3 Electrode Surface Mount Symmetrical Series
(3)
DC Breakdown Voltage
(Please reference specification to determine available voltage options for
each series.)
70 = 70V
75 = 75V
90 = 90V
120 = 120V
145 = 145V
150 = 150V
200 = 200V
230 = 230V
250 = 250V
300 = 300V
350 = 350V
400 = 400V
420 = 420V
470 = 470V
500 = 500V
600 = 600V
800 = 800V
1100 = 1100V
1200 = 1200V
1800 = 1800V
2000 = 2000V
2500 = 2500V
2700 = 2700V
3000 = 3000V
(4)
(5)
D =ꢀSpecialꢀDCꢀVoltageꢀBreakdownꢀ-ꢀ3SSMꢀSeriesꢀOnly
Taping Specifications
TR = Tape & Reel
* 3216 and 4532 only available on tape and reel “TR” suffix.
WORLD PRODUCTS INC. 19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
Rev. 13.9
20 | Gas Discharge Tubes
