Gas DischarGe Tubes
3 Electrode Series
Part Numbering System
Exampleꢀpartꢀnumber:
WPGT - 3R 200
C
(1)
(2)
(3)
(4)
(1)
(2)
World Products Gas Discharge Tubes
Series Code
3RSM = 3 Electrode Ultra Mini Series

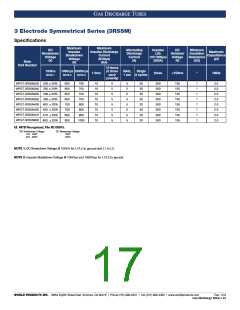

3RSSM = 3 Electrode Symmetrical Series
3RM = 3 Electrode Mini Series
3R = 3 Electrode Standard Series
(3)
DC Breakdown Voltage
(Please reference specification to determine available voltage options for each series.)
75 = 75V
90 = 90V
120 = 120V
145 = 145V
150 = 150V
200 = 200V
230 = 230V
250 = 250V
260 = 260V
300 = 300V
350 = 350V
400 = 400V
420 = 420V
470 = 470V
550 = 550V
600 = 600V
(4)

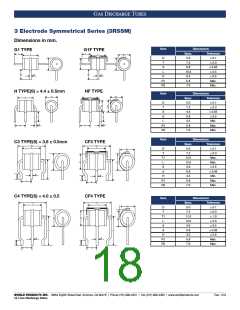

Lead Type
B = No Leads
CFꢀ=ꢀ(1.0mmꢀleadꢀdiameter)ꢀwithꢀFailꢀSafeꢀ-ꢀ3RꢀSeriesꢀonly
CF1ꢀ=ꢀ(0.8mmꢀleadꢀdiameter)ꢀwithꢀFailꢀSafe
Cꢀ=ꢀRadialꢀleadꢀ(1.0mmꢀleadꢀdiameter)ꢀ-ꢀ3RꢀSeriesꢀonly
C2ꢀ=ꢀRadialꢀleadꢀꢀ(0.8mmꢀleadꢀdiameter)ꢀ-ꢀ3RꢀSeriesꢀonly
C3 = Radial lead with 3ꢀ8mm 0ꢀ5mm lead pitch (0ꢀ8mm lead diameter) 3RM, 3RSM and 3RSSM Series only
CF3 =ꢀRadialꢀleadꢀwithꢀ3.8mmꢀ±ꢀ0.5mmꢀleadꢀpitchꢀ(0.8mmꢀleadꢀdiameter)ꢀwithꢀFailꢀSafeꢀ-ꢀ3RSMꢀandꢀ3RSSMꢀꢀ
Series only
C4 = Radial lead with 4ꢀ0mm 0ꢀ5mm lead pitch (0ꢀ8mm lead diameter) 3RSM and 3RSSM Series only
CF4 =ꢀRadialꢀleadꢀwithꢀ4.0mmꢀ±ꢀ0.5mmꢀleadꢀpitchꢀ(0.8mmꢀleadꢀdiameter)ꢀwithꢀFailꢀSafeꢀ-ꢀ3RSMꢀandꢀ3RSSMꢀꢀ
Series only
Gꢀ=ꢀAxialꢀleadꢀ(1.0mmꢀleadꢀdiameter)ꢀ-ꢀ3RꢀSeriesꢀonly
G1 = Axial lead (0ꢀ8mm lead diameter)
G1Fꢀ=ꢀAxialꢀleadꢀ(0.8mmꢀleadꢀdiameter)ꢀwithꢀFailꢀSafeꢀ-ꢀ3RSMꢀandꢀ3RSSMꢀSeriesꢀonly
H = Radial lead with 4ꢀ4mm 0ꢀ3mm lead pitch (0ꢀ8mm lead diameter) 3RM Series only
HFꢀ=ꢀRadialꢀleadꢀwithꢀ4.4mmꢀ±ꢀ0.5mmꢀleadꢀpitchꢀ(0.8mmꢀleadꢀdiameter)ꢀwithꢀFailꢀSafeꢀ-ꢀ3RSMꢀandꢀ3RSSMꢀ
Series only
