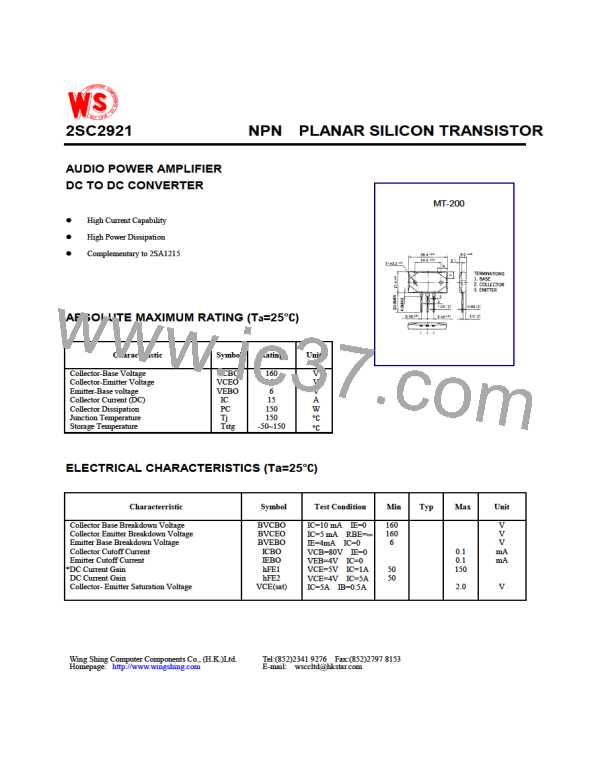

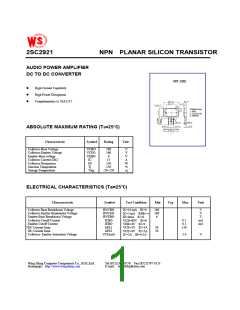

2SC2921
AUDIO POWER AMPLIFIER
DC TO DC CONVERTER
NPN
PLANAR SILICON TRANSISTOR
MT-200
!
!
!
High Current Capability
High Power Dissipation
Complementary to 2SA1215
ABSOLUTE MAXIMUM RATING (T
a
=25°C)
C
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base voltage
Collector Current (DC)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Rating
160
160
6
15
150
150
-50~150
Unit
V
V
V
A
W
°C
°C
ELECTRICAL CHARACTERISTICS (Ta=25°C)
C
Characterristic
Collector Base Breakdown Voltage
Collector Emitter Breakdown Voltage
Emitter Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
*DC Current Gain
DC Current Gain
Collector- Emitter Saturation Voltage
Symbol
BVCBO
BVCEO
BVEBO
ICBO
IEBO
hFE1
hFE2
VCE(sat)
Test Condition
IC=10 mA IE=0
IC=5 mA RBE=∞
IE=4mA IC=0
VCB=80V IE=0
VEB=4V IC=0
VCE=5V IC=1A
VCE=4V IC=5A
IC=5A IB=0.5A
Min
160
160
6
Typ
Max
Unit
V
V
V
mA
mA
50
50
0.1
0.1
150
2.0
V
Wing Shing Computer Components Co., (H.K.)Ltd.
Homepage:
http://www.wingshing.com
Tel:(852)2341 9276 Fax:(852)2797 8153
E-mail: wsccltd@hkstar.com
