SD206H-034-00001N 参数 Datasheet PDF下载

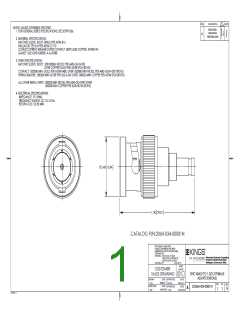

SD206H-034-00001N图片预览
型号: SD206H-034-00001N
PDF下载: 下载PDF文件 查看货源
内容描述: BNC插头到1.0 / 2.3母适配器( ROHS ) [BNC MALE TO 1.0/2.3 FEMALE ADAPTOR(ROHS)]
分类和应用:
文件页数/大小: 1 页 / 81 K
品牌: WINCHESTER [ Winchester Electronics Corporation ]

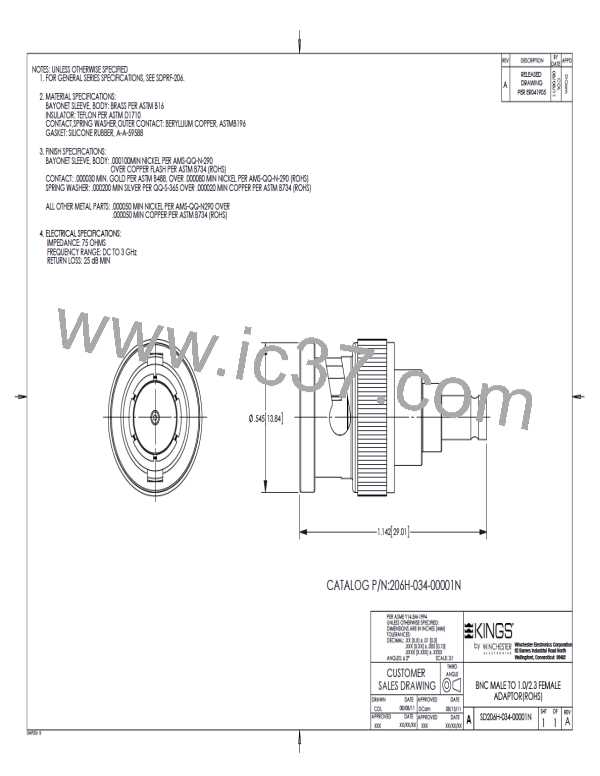

NOTES: UNLESS OTHERWISE SPECIFIED
1. FOR GENERAL SERIES SPECIFICATIONS, SEE SDPRF-206.
2. MATERIAL SPECIFICATIONS:
BAYONET SLEEVE, BODY: BRASS PER ASTM B16
INSULATOR: TEFLON PER ASTM D1710
CONTACT,SPRING WASHER,OUTER CONTACT: BERYLLIUM COPPER, ASTMB196
GASKET: SILICONE RUBBER, A-A-59588
3. FINISH SPECIFICATIONS:
BAYONET SLEEVE, BODY: .000100MIN NICKEL PER AMS-QQ-N-290
OVER COPPER FLASH PER ASTM B734 (ROHS)
CONTACT: .000030 MIN. GOLD PER ASTM B488, OVER .000080 MIN NICKEL PER AMS-QQ-N-290 (ROHS)
SPRING WASHER: .000200 MIN SILVER PER QQ-S-365 OVER .000020 MIN COPPER PER ASTM B734 (ROHS)
ALL OTHER METAL PARTS: .000050 MIN NICKEL PER AMS-QQ-N290 OVER
.000050 MIN COPPER PER ASTM B734 (ROHS)
4. ELECTRICAL SPECIFICATIONS:
IMPEDANCE: 75 OHMS
FREQUENCY RANGE: DC TO 3 GHz
RETURN LOSS: 25 dB MIN
REV
DESCRIPTION
BY
APPD
DATE
COL
08/08/11
DCam
A
RELEASED
DRAWING
PER ER041905
.545 13.84
1.142 29.01
CATALOG P/N:206H-034-00001N
PER ASME Y14.5M-1994
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
DECIMAL: .XX [X.X] ± .01 [0.3]
.XXX [X.XX] ± .005 [0.13]
.XXXX [X.XXX] ± .XXXX
ANGLES: ± 2°
SCALE: 3:1
THIRD
ANGLE
Winchester Electronics Corporation
62 Barnes Industrial Road North
Wallingford, Connecticut 06492
CUSTOMER
SALES DRAWING
DRAWN
COL
APPROVED
XXX
DMF026 B
DATE APPROVED
08/08/11 DCam
DATE APPROVED
XX/XX/XX XXX
DATE
08/15/11
DATE
XX/XX/XX
BNC MALE TO 1.0/2.3 FEMALE
ADAPTOR(ROHS)
A
SD206H-034-00001N
SHT
1
OF
1
REV
A
