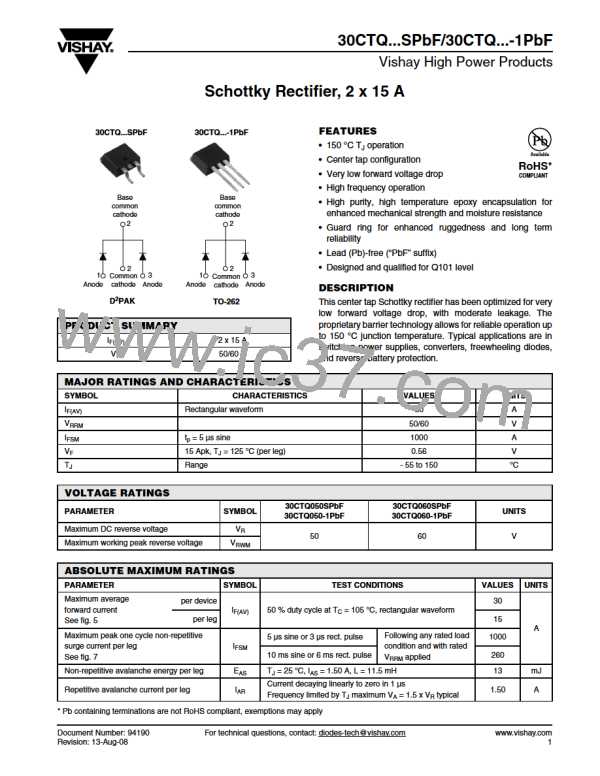

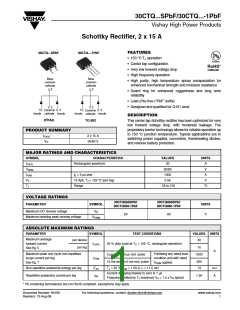

30CTQ...SPbF/30CTQ...-1PbF
Vishay High Power Products
Schottky Rectifier, 2 x 15 A
FEATURES
30CTQ...-1PbF
30CTQ...SPbF
• 150 °C TJ operation
Available
• Center tap configuration
• Very low forward voltage drop
• High frequency operation
RoHS*
COMPLIANT
Base
common
cathode
Base
common
cathode
• High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
2
2
• Guard ring for enhanced ruggedness and long term
reliability
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for Q101 level
2
2
1
1
3
3
Common
Common
cathode
Anode
Anode
Anode
Anode
cathode
DESCRIPTION
D2PAK
TO-262
This center tap Schottky rectifier has been optimized for very
low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation up
to 150 °C junction temperature. Typical applications are in
switching power supplies, converters, freewheeling diodes,
and reverse battery protection.
PRODUCT SUMMARY
IF(AV)
2 x 15 A
50/60 V
VR
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
IF(AV)
VRRM
IFSM
CHARACTERISTICS
VALUES
30
UNITS
Rectangular waveform
A
V
50/60
tp = 5 µs sine
1000
A
VF
15 Apk, TJ = 125 °C (per leg)
Range
0.56
V
TJ
- 55 to 150
°C
VOLTAGE RATINGS
PARAMETER
30CTQ050SPbF
30CTQ050-1PbF
30CTQ060SPbF
30CTQ060-1PbF
SYMBOL
UNITS
Maximum DC reverse voltage
VR
50
60
V
Maximum working peak reverse voltage
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES UNITS
Maximum average
forward current

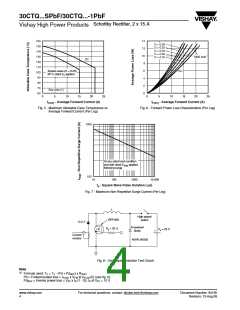

See fig. 5
per device
per leg
30
IF(AV)
50 % duty cycle at TC = 105 °C, rectangular waveform
15
A
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
Following any rated load
condition and with rated
5 µs sine or 3 µs rect. pulse
10 ms sine or 6 ms rect. pulse
1000
IFSM
260
VRRM applied
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
EAS
IAR
TJ = 25 °C, IAS = 1.50 A, L = 11.5 mH
13
mJ
A
Current decaying linearly to zero in 1 µs
Frequency limited by TJ maximum VA = 1.5 x VR typical
1.50
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94190
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
