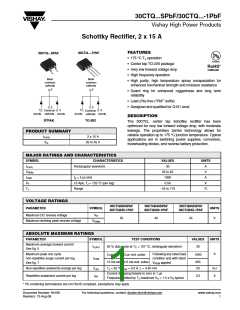

30CTQ...SPbF/30CTQ...-1PbF
Vishay High Power Products
Schottky Rectifier, 2 x 15 A
30CTQ...SPbF
30CTQ...-1PbF
FEATURES
• 175 °C T
J
operation
• Center tap TO-220 package
• Very low forward voltage drop
• High frequency operation
Available
RoHS*
COMPLIANT
Base
common
cathode
2
Base
common
cathode
2
• High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for Q101 level
2
1 Common
3
Anode cathode Anode
2
1 Common
3
Anode cathode Anode
DESCRIPTION
The 30CTQ.. center tap Schottky rectifier has been
optimized for very low forward voltage drop, with moderate
leakage. The proprietary barrier technology allows for
reliable operation up to 175 °C junction temperature. Typical
applications are in switching power supplies, converters,
freewheeling diodes, and reverse battery protection.
D
2
PAK
TO-262
PRODUCT SUMMARY
I
F(AV)
V
R
2 x 15 A
35 to 45 V
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
t
p
= 5 µs sine
15 Apk, T
J
= 125 °C (per leg)
Range
CHARACTERISTICS
Rectangular waveform
VALUES
30
35 to 45
1060
0.56
- 55 to 175
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
30CTQ035SPbF
30CTQ035-1PbF
35
30CTQ040SPbF
30CTQ040-1PbF
40
30CTQ045SPbF
30CTQ045-1PbF
45
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
See fig. 5
Maximum peak one cycle
non-repetitive surge current per leg
See fig. 7
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 127 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
VALUES
30
1060
265
20
3.0
mJ
A
A
UNITS
T
J
= 25 °C, I
AS
= 3.0 A, L = 4.40 mH
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94188
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
