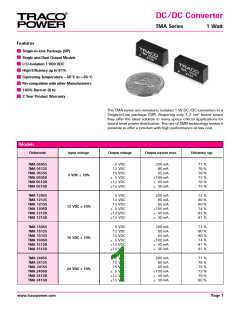

DC/ DC Converter
TMA Series
1 Watt

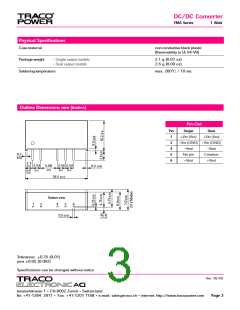

Physical Specifications
Case material
non conductive black plastic
(flammability to UL 94-V0)
Package weight
– Single output models
– Dual output models
2.1 g (0.07 oz)
2.6 g (0.09 oz)
Soldering temperature
max. 260°C / 10 sec
Outline Dimensions mm (inches)
Pin-Out
Pin
1
Single
Dual
+Vin (Vcc)
+Vin (Vcc)
2
–Vin (GND) –Vin (GND)
4
–Vout
No pin
+Vout
–Vout
Common
+Vout
0.5
(0.02)
5
6
2.3
2.54
2.54 2.54
±
0.4
5.08
0.5 (0.02)
(0.2)
(0.1)
(0.1)
(0.1)
(0.09
±
0.02)
19.5 (0.77)
Bottom view
1
2
4
5
6
0.5 (0.02)
Tolerances ±0.25 (0.01)
pins ±0.05 (0.002)
Specifications can be changed without notice
Rev. 06/ 00
