XC6204/XC6205 Series

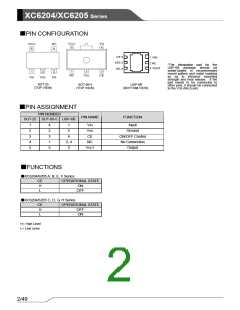

■PIN CONFIGURATION
CE 6
1 VIN
VSS 5
2 NC
*The dissipation pad for the
USP-6B package should be
solder-plated in recommended
mount pattern and metal masking
so as to enhance mounting
strength and heal release. If the
pad needs to be connected to
other pins, it should be connected
to the VSS (No.5) pin.
3 VOUT
NC 4
SOT-25
(TOP VIEW)
SOT-89-5
(TOP VIEW)
USP-6B
(BOTTOM VIEW)
■PIN ASSIGNMENT
PIN NUMBER
PIN NAME
FUNCTION
SOT-25 SOT-89-5 USP-6B
1
2
3
4
5
4
2
3
1
5
1
5
VIN
VSS
CE
Input
Ground
6
ON/OFF Control
No Connection
Output
2, 4
3
NC
VOUT
■FUNCTIONS
●XC6204/6205 A, B, E, F Series
CE
H
OPERATIONAL STATE
ON
L
OFF
●XC6204/6205 C, D, G, H Series
CE
H
OPERATIONAL STATE
OFF
ON
L
H= High Level
L= Low Level
2/49
