TPS929160-Q1
ZHCSNG0 – APRIL 2023
www.ti.com.cn
7.3.9 OFAF Setup In FAIL-SAFE state
The TPS929160-Q1 has a unique setup for failure behavior in FAIL-SAFE state. If there is a failure detected in
FAIL-SAFE state, the TPS929160-Q1 automatically reacts to the failure. The register OFAF determines whether
the result behavior of output failure is one-fails-all-fail or one-fails-others-on.
In FAIL-SAFE state, the TPS929160-Q1 shuts down all enabled current outputs except the faulty output when
OFAF is set to 1. Otherwise the TPS929160-Q1 keeps regulation for all enable current outputs except the faulty
output when OFAF is set to 0. 表 7-9 provides details.
7.3.10 ERR Output
The ERR pin is a programmable fault indicator pin. This pin can be used as an interrupt output to master
controller in case there is any fault in NORMAL state. In FAIL-SAFE states, the ERR pin can be used as an
output to other ERR pin of other TPS929160-Q1 to achieve one-fails-all-fail at system level. The ERR pin is an
open-drain output with current limit up to IPD(ERR). TI recommends a < 10-kΩ external pullup resistor from the
ERR pin to the same IO voltage of the master controller.
In NORMAL state, when a fault is triggered, depending on the fault type, the ERR pin is either pulled down
constantly or pulled down for a single pulse. After an ERR output is triggered, the master controller must take
action to deal with the failure and reset the fault flag. For non-critical faults, the TPS929160-Q1 pulls down the
ERR pin with a duration of 50 µs and release; for critical faults, device constantly pulls down ERR as described
in 表 7-6. In NORMAL state, basically, the TPS929160-Q1 only reports the faults to the master controller for
most of the failure and takes no actions except supply or LDO UVLO, reference fault, and overtemperature. The
master controller determines what action to take according to the type of the failure.
The TPS929160-Q1 provides a forced-error feature to validate the error feedback-loop integrity in NORMAL
state. In NORMAL state, if the microcontroller sets FORCEERR to 1, the FLAG_ERR is set 1 and pulls down
ERR output with a pulse of 50 µs accordingly. The FORCEERR automatically returns to 0.
In FAIL-SAFE states, the ERR pin is used as fault bus. When there is any output failure reported, the ERR is
pulled down by internal current sink IPD(ERR). The TPS929160-Q1 monitors the voltage of the ERR pin. If the
one-fails-all-fail diagnostics is enabled by setting register OFAF to 1, all current output channels are turned off,
as well as diagnostics, when the ERR pin voltage is low. If register OFAF is 0, the device only turns off the failed
channel with alive channels diagnostics enabled.
表 7-9. One-Fails-All-Fail Feature in Fail-Safe State
OFAF = 1
OFAF = 0
All OUT channel OFF except failure detected
OUT retries every 10 ms
ERR pulled low internally
ERR pulled low externally
Only failure detected OUT OFF
All OUT channel ON
All OUT channel OFF

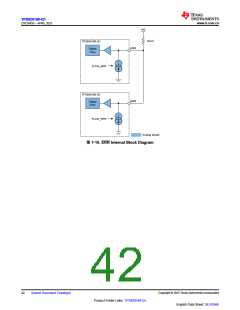

If multiple TPS929160-Q1 devices are used in one application, tying the ERR pins together achieves the
one-fails-all-fail behavior in FAIL-SAFE states without master controlling. Any one of TPS929160-Q1 reports fault
by pulling the ERR pin to low, and the low voltage on ERR bus is detected by other TPS929160-Q1 as 图 7-10
illustrated. If the register OFAF is set to 1 for all TPS929160-Q1 devices having the ERR pins tied together, all
TPS929160-Q1 devices turn off current for all output channels.
