www.ti.com

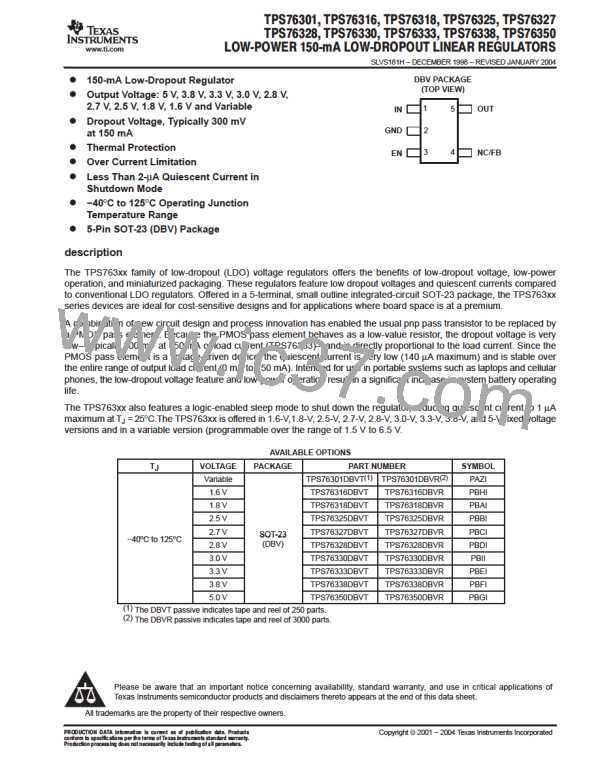

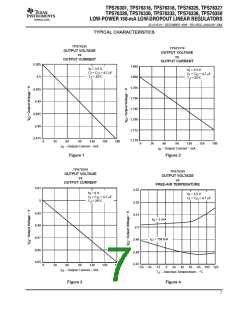

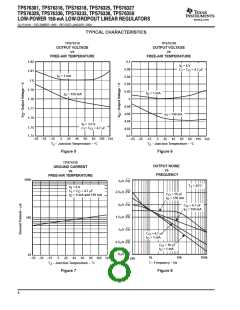

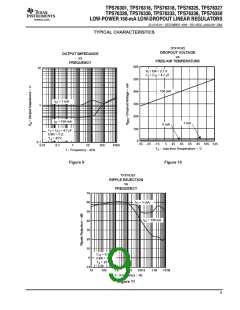

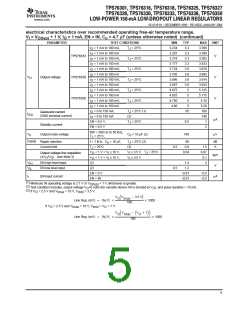

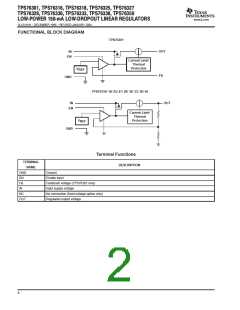

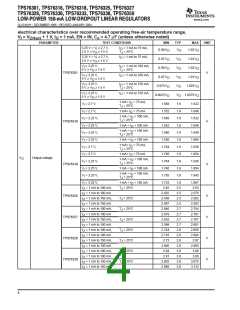

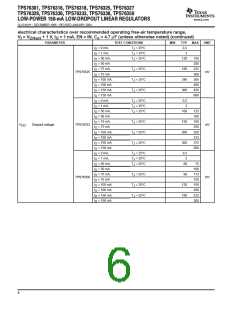

ꢌꢍ ꢎꢏꢁꢍ ꢎ ꢐꢑ ꢇ ꢋ ꢆ ꢏꢒꢓ ꢌ ꢍꢎꢏꢔꢑꢍ ꢁ ꢍꢕꢀ ꢌ ꢖꢗꢐ ꢓꢑ ꢑꢐ ꢘ ꢕꢌ ꢓꢀꢍ ꢑꢂ
SLVS181H − DECEMBER 1998 − REVISED JANUARY 2004
1

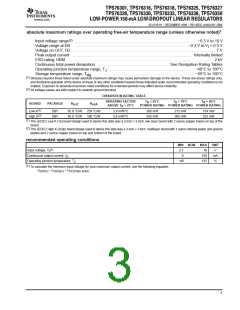

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
(2)
Input voltage range
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to 10 V
Voltage range at EN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.3 V to V + 0.3 V
I
Voltage on OUT, FB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Peak output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally limited
ESD rating, HBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 kV
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Tables
Operating junction temperature range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40°C to 150°C
J
Storage temperature range, T
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
stg
(1)
(2)
Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only,
and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values are with respect to network ground terminal.
DISSIPATION RATING TABLE
DERATING FACTOR
T
≤ 25°C
T
= 70°C
T = 85°C
A
A
A
BOARD
PACKAGE
R
R
θJC
θJA
ABOVE T = 25°C
POWER RATING POWER RATING POWER RATING
A
(1)
(2)
Low K
DBV
DBV
65.8 °C/W
65.8 °C/W
259 °C/W
180 °C/W
3.9 mW/°C
5.6 mW/°C
386 mW
555 mW
212 mW
305 mW
154 mW
222 mW
High K
(1)
The JEDEC Low K (1s) board design used to derive this data was a 3 inch x 3 inch, two layer board with 2 ounce copper traces on top of the
board.
The JEDEC High K (2s2p) board design used to derive this data was a 3 inch x 3 inch, multilayer board with 1 ounce internal power and ground
planes and 2 ounce copper traces on top and bottom of the board.
(2)
recommended operating conditions
MIN NOM
MAX
10
UNIT
V
(1)
Input voltage, V
2.7
0
I
Continuous output current, I
150
125
mA
°C
O
Operating junction temperature, T
−40
J
(1)
To calculate the minimum input voltage for your maximum output current, use the following equation:
= V + V
V
I(min)
O(max) DO(max load)
3
