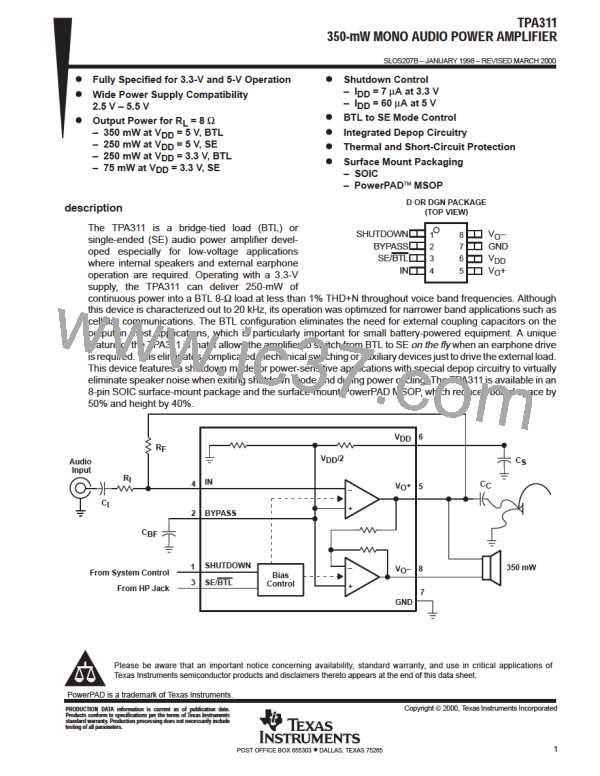

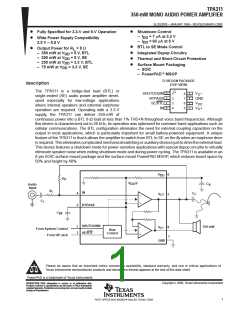

TPA311
350-mW MONO AUDIO POWER AMPLIFIER
SLOS207B – JANUARY 1998 – REVISED MARCH 2000
Fully Specified for 3.3-V and 5-V Operation
Shutdown Control
– I
– I
= 7 µA at 3.3 V
= 60 µA at 5 V
DD
DD
Wide Power Supply Compatibility
2.5 V – 5.5 V
BTL to SE Mode Control
Output Power for R = 8 Ω
L
– 350 mW at V
– 250 mW at V
– 250 mW at V
= 5 V, BTL
= 5 V, SE
= 3.3 V, BTL
Integrated Depop Circuitry
DD
DD
DD
Thermal and Short-Circuit Protection
Surface Mount Packaging
– SOIC
– 75 mW at V
= 3.3 V, SE
DD
– PowerPAD MSOP
D OR DGN PACKAGE
(TOP VIEW)
description
The TPA311 is a bridge-tied load (BTL) or
single-ended (SE) audio power amplifier devel-
oped especially for low-voltage applications
where internal speakers and external earphone
operation are required. Operating with a 3.3-V
supply, the TPA311 can deliver 250-mW of
SHUTDOWN
BYPASS
SE/BTL
IN
V –
O
GND
1
2
3
4
8
7
6
5
V
DD
V +
O
continuous power into a BTL 8-Ω load at less than 1% THD+N throughout voice band frequencies. Although
this device is characterized out to 20 kHz, its operation was optimized for narrower band applications such as
cellular communications. The BTL configuration eliminates the need for external coupling capacitors on the
output in most applications, which is particularly important for small battery-powered equipment. A unique
feature of the TPA311 is that it allows the amplifier to switch from BTL to SE on the fly when an earphone drive
is required. This eliminates complicated mechanical switching or auxiliary devices just to drive the external load.
This device features a shutdown mode for power-sensitive applications with special depop circuitry to virtually
eliminate speaker noise when exiting shutdown mode and during power cycling. The TPA311 is available in an
8-pin SOIC surface-mount package and the surface-mount PowerPAD MSOP, which reduces board space by
50% and height by 40%.
V
DD
6
R
F
V
DD
/2
C
Audio
Input
S
R
I
IN
4
2
C
V
O
+
C
5
–
+
C
I
BYPASS
C
BF
SHUTDOWN
SE/BTL
1
3
350 mW
–
+
V
O
–
8
From System Control
From HP Jack
Bias
Control
7
GND
