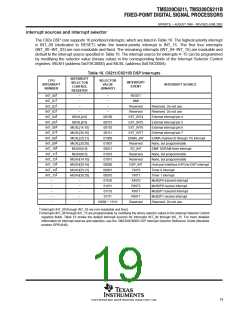

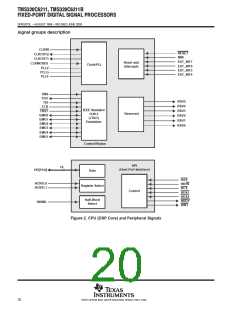

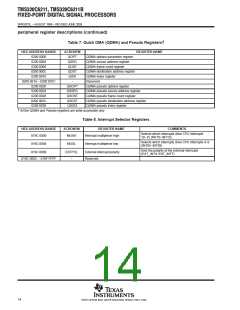

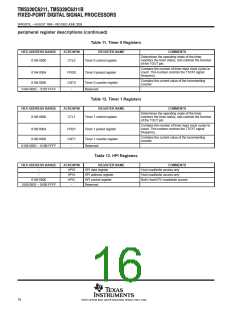

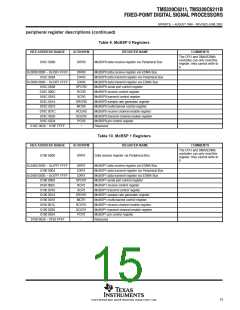

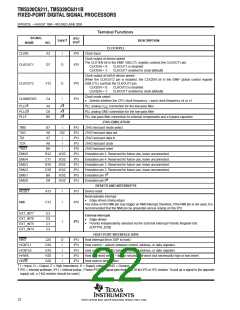

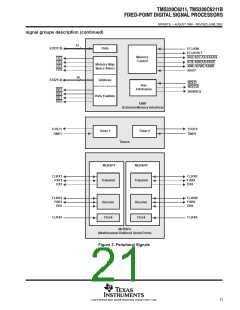

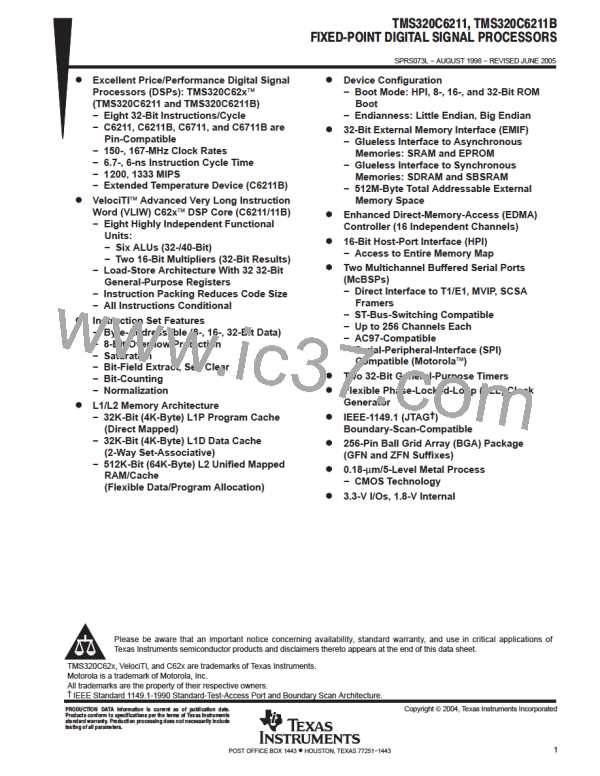

SPRS073L − AUGUST 1998 − REVISED JUNE 2005

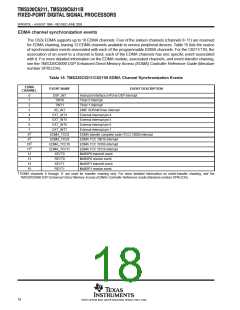

EDMA channel synchronization events
The C62x EDMA supports up to 16 EDMA channels. Four of the sixteen channels (channels 8−11) are reserved
for EDMA chaining, leaving 12 EDMA channels available to service peripheral devices. Table 15 lists the source
of synchronization events associated with each of the programmable EDMA channels. For the C6211/11B, the
association of an event to a channel is fixed; each of the EDMA channels has one specific event associated
with it. For more detailed information on the EDMA module, associated channels, and event-transfer chaining,
see the TMS320C6000 DSP Enhanced Direct Memory Access (EDMA) Controller Reference Guide (literature
number SPRU234).
Table 15. TMS320C6211/C6211B EDMA Channel Synchronization Events
EDMA
CHANNEL
EVENT NAME
EVENT DESCRIPTION
Host-port interface (HPI)-to-DSP interrupt
0
1
2
3
4
5
6
7
DSP_INT
TINT0
Timer 0 interrupt
TINT1
Timer 1 interrupt
SD_INT
EMIF SDRAM timer interrupt
External interrupt pin 4
EXT_INT4
EXT_INT5
EXT_INT6
EXT_INT7
EDMA_TCC8
EDMA_TCC9
EDMA_TCC10
EDMA_TCC11
XEVT0
External interrupt pin 5
External interrupt pin 6
External interrupt pin 7
†
8
9
EDMA transfer complete code (TCC) 1000b interrupt
EDMA TCC 1001b interrupt
EDMA TCC 1010b interrupt
EDMA TCC 1011b interrupt
McBSP0 transmit event
McBSP0 receive event
†
†
10
†
11
12
13
14
15
REVT0
XEVT1
McBSP1 transmit event
McBSP1 receive event
REVT1
†
EDMA channels 8 through 11 are used for transfer chaining only. For more detailed information on event-transfer chaining, see the
TMS320C6000 DSP Enhanced Direct Memory Access (EDMA) Controller Reference Guide (literature number SPRU234).
