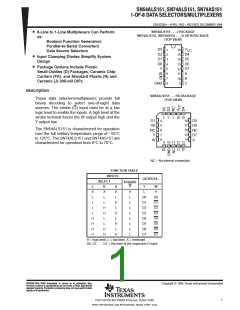

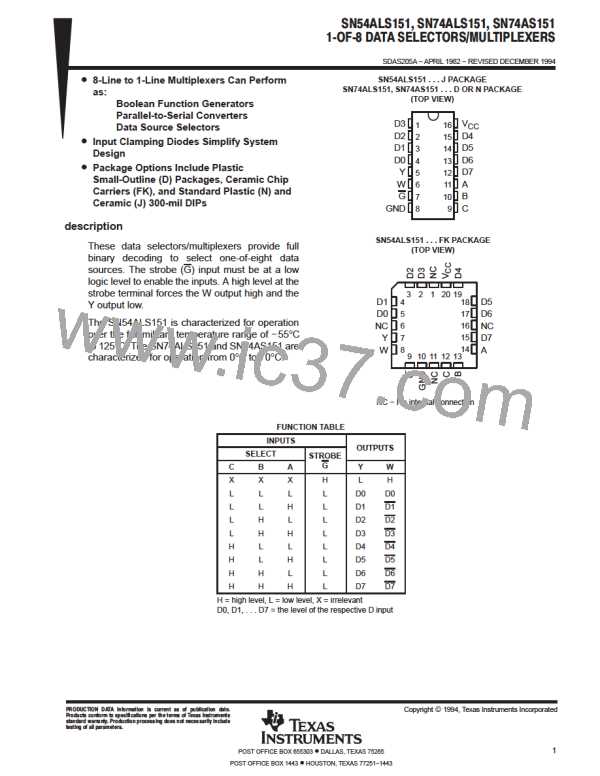

SN54ALS151, SN74ALS151, SN74AS151
1 OF 8 DATA SELECTORS/MULTIPLEXERS
SDAS205A − APRIL 1982 − REVISED DECEMBER 1994
8-Line to 1-Line Multiplexers Can Perform
as:
Boolean Function Generators
Parallel-to-Serial Converters
Data Source Selectors
Input Clamping Diodes Simplify System
Design
Package Options Include Plastic
Small-Outline (D) Packages, Ceramic Chip
Carriers (FK), and Standard Plastic (N) and
Ceramic (J) 300-mil DIPs
SN54ALS151 . . . J PACKAGE
SN74ALS151, SN74AS151 . . . D OR N PACKAGE
(TOP VIEW)
D3
D2
D1
D0
Y
W
G
GND
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
CC
D4
D5
D6
D7
A
B
C
description
These data selectors/multiplexers provide full
binary decoding to select one-of-eight data
sources. The strobe (G) input must be at a low
logic level to enable the inputs. A high level at the
strobe terminal forces the W output high and the
Y output low.
The SN54ALS151 is characterized for operation
over the full military temperature range of − 55°C
to 125°C. The SN74ALS151 and SN74AS151 are
characterized for operation from 0°C to 70°C.
SN54ALS151 . . . FK PACKAGE
(TOP VIEW)
D1
D0
NC
Y
W
4
5
6
7
8
3 2 1 20 19
18
17
16
15
14
9 10 11 12 13
D2
D3
NC
V
CC
D4
D5
D6
NC
D7
A
NC − No internal connection
OUTPUTS
STROBE
G
H
L
L
L
L
L
L
L
L
Y
L
D0
D1
D2
D3
D4
D5
D6
D7
W
H
D0
D1
D2
D3
D4
D5
D6
D7
Copyright
1994, Texas Instruments Incorporated
FUNCTION TABLE
INPUTS
SELECT
C
X
L
L
L
L
H
H
H
H
B
X
L
L
H
H
L
L
H
H
A
X
L
H
L
H
L
H
L
H
H = high level, L = low level, X = irrelevant
D0, D1, . . . D7 = the level of the respective D input
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
POST OFFICE BOX 1443
HOUSTON, TEXAS 77251−1443
DALLAS, TEXAS 75265
G
GND
NC
C
B
