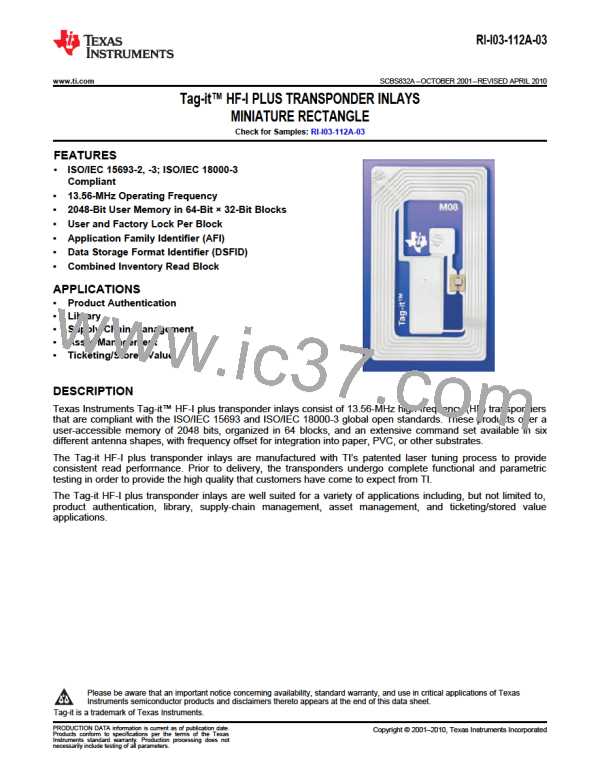

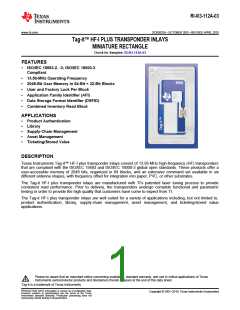

RI-I03-112A-03
SCBS832A –OCTOBER 2001–REVISED APRIL 2010
www.ti.com

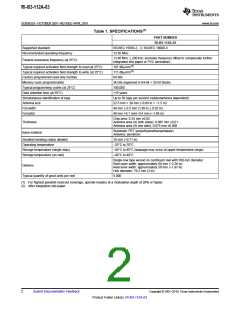

Table 1. SPECIFICATIONS(1)
PART NUMBER
RI-I03-112A-03
Supported standard
ISO/IEC 15693-2, -3; ISO/IEC 18000-3
13.56 MHz
Recommended operating frequency
13.86 MHz ± 200 kHz (includes frequency offset to compensate further
integration into paper or PVC lamination)
Passive resonance frequency (at 25°C)
Typical required activation field strength to read (at 25°C)
Typical required activation field strength to write (at 25°C)
Factory programmed read-only number
Memory (user programmable)
Typical programming cycles (at 25°C)
Data retention time (at 55°C)
Simultaneous identification of tags
Antenna size
107 dBmA/m(2)
111 dBmA/m(2)
64 bits
2k bits organized in 64-bit × 32-bit blocks
100,000
>10 years
Up to 50 tags per second (reader/antenna dependent)
22.5 mm × 38 mm (~0.89 in × ~1.5 in)
48 mm ± 0.5 mm (1.89 in ± 0.02 in)
48 mm +0.1 mm/–0.4 mm (~1.89 in)
Foil width
Foil pitch
Chip area: 0.34 mm ±0.02
Thickness
Antenna area (Al both sides): 0.085 mm ±0.01
Antenna area (Al one side): 0.075 mm ±0.008
Substrate: PET (polyethylenetherephtalate)
Antenna: aluminum
Base material
Smallest bending radius allowed
Operating temperature
18 mm (~0.71 in)
–25°C to 70°C
Storage temperature (single inlay)
Storage temperature (on reel)
–40°C to 85°C (warpage may occur at upper temperature range)
–40°C to 40°C
Single-row tape wound on cardboard reel with 500-mm diameter
Reel outer width: approximately 60 mm (~2.36 in)
Reel inner width: approximately 50 mm (~1.97 in)
Hub diameter: 76.2 mm (3 in)
Delivery
Typical quantity of good units per reel
5,000
(1) For highest possible read-out coverage, operate readers at a modulation depth of 20% or higher.
(2) After integration into paper
