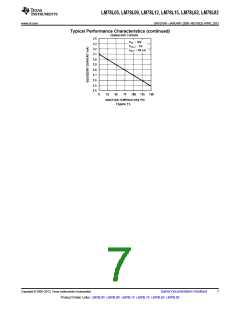

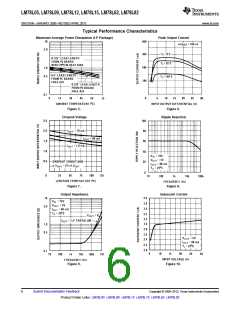

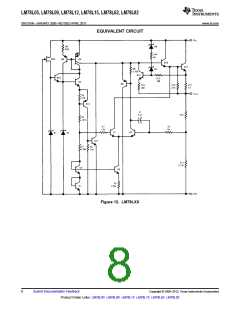

LM78L05, LM78L09, LM78L12, LM78L15, LM78L62, LM78L82
SNVS754I –JANUARY 2000–REVISED APRIL 2013
www.ti.com

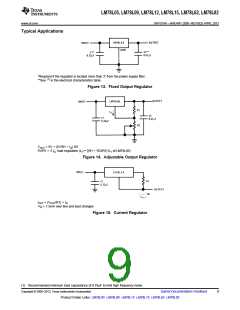

*Solid tantalum.
**Heat sink Q1.
***Optional: Improves ripple rejection and transient response.
Load Regulation: 0.6% 0 ≤ IL ≤ 250mA pulsed with tON = 50ms.
Figure 16. 5V, 500mA Regulator with Short Circuit Protection
*Solid tantalum.
Figure 17. ±15V, 100mA Dual Power Supply
*Solid tantalum.
VOUT = VG + 5V, R1 = (−VIN/IQ LM78L05
)
VOUT = 5V (R2/R4) for (R2 + R3) = (R4 + R5)
A 0.5V output will correspond to (R2/R4) = 0.1 (R3/R4) = 0.9
Figure 18. Variable Output Regulator 0.5V-18V
