(4/9)
I
N
D
U
C
T
O
R
S
SLF6028 Type

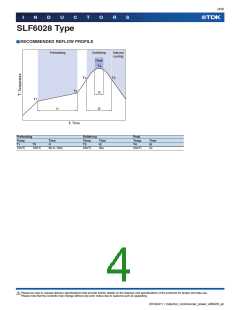

RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Natural
cooling
Peak
T4
T3
T3
T2
t3
t2
T1
t1
t: Time
Preheating
Temp.
T1
Soldering
Temp.
T3
Peak
Temp.
T4
Time
t1
60 to 120s
Time
t2
30s
Time
t3
5s
T2
180°C
150°C
230°C
250°C
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
