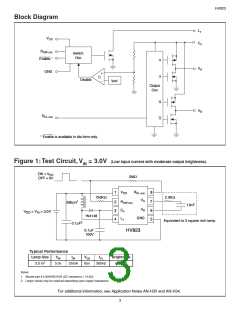

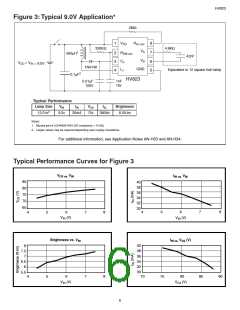

HV823

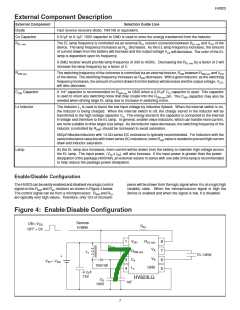

External Component Description
External Component
Selection Guide Line
Diode
Fast reverse recovery diode, 1N4148 or equivalent.
Cs Capacitor
REL-osc
0.01µF to 0.1µF, 100V capacitor to GND is used to store the energy transferred from the inductor.
The EL lamp frequency is controlled via an external REL resistor connected between REL-osc and VDD of the
device. The lamp frequency increases as REL decreases. As the EL lamp frequency increases, the amount
of current drawn from the battery will increase and the output voltage VCS will decrease. The color of the EL
lamp is dependent upon its frequency.
A 2MΩ resistor would provide lamp frequency of 330 to 450Hz. Decreasing the REL-osc by a factor of 2 will
increase the lamp frequency by a factor of 2.
RSW-osc
The switching frequency of the converter is controlled via an external resistor, RSW between RSW-osc and VDD
of the device. The switching frequency increases as RSW decreases. With a given inductor, as the switching
frequency increases, the amount of current drawn from the battery will decrease and the output voltage, VCS
,
will also decrease.
CSW Capacitor
Lx Inductor
A 1nF capacitor is recommended on RSW-osc to GND when a 0.01µF CS capacitor is used. This capacitor
is used to shunt any switching noise that may couple into the RSW-osc pin. The CSW capacitor may also be
needed when driving large EL lamp due to increase in switching noise.
The inductor Lx is used to boost the low input voltage by inductive flyback. When the internal switch is on,
the inductor is being charged. When the internal switch is off, the charge stored in the inductor will be
transferred to the high voltage capacitor CS. The energy stored in the capacitor is connected to the internal
H-bridge and therefore to the EL lamp. In general, smaller value inductors, which can handle more current,
are more suitable to drive larger size lamps. As the inductor value decreases, the switching frequency of the
inductor (controlled by RSW) should be increased to avoid saturation.
560µH Murata inductors with 14.5Ω series DC resistance is typically recommended. For inductors with the
sameinductancevaluebutwithlowerseriesDCresistance, lowerRSW valueisneededtopreventhighcurrent
draw and inductor saturation.
Lamp
As the EL lamp size increases, more current will be drawn from the battery to maintain high voltage across
the EL lamp. The input power, (VIN x IIN), will also increase. If the input power is greater than the power
dissipation of the package (400mW), an external resistor in series with one side of the lamp is recommended
to help reduce the package power dissipation.
Enable/Disable Configuration
TheHV823canbeeasilyenabledanddisabledviaalogiccontrol
signal on the RSW and REL resistors as shown in Figure 4 below.
The control signal can be from a microprocessor. RSW and REL
are typically very high values. Therefore, only 10’s of microam-
peres will be drawn from the logic signal when it is at a logic high
(enable) state. When the microprocessor signal is high the
device is enabled and when the signal is low, it is disabled.
Figure 4: Enable/Disable Configuration
Remote
Enable
ON =VDD
OFF = 0V
REL
VDD
REL-osc
VA
8
7
6
5
RSW
RSW-osc
Cs
2
3
4
Lx
EL Lamp
+
VB
VIN = VDD
-
1N4148
GND
Lx
4.7µF
15V
HV823LG
CS
100V
1nF
7
