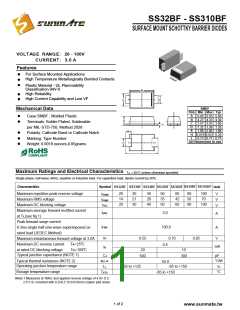

SS32BF - SS310BF
SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE: 20 - 100V
CURRENT: 3.0 A
Features
!
!
!
For Surface Mounted Applications
High Temperature Metallurgically Bonded Contacts
Mechanical Data
!
!
!
!
!
Plastic Material - UL Flammability
Classification 94V-0
B
!
High Reliability
!
High Current Capability and Low VF
C
E
Case:SMBF , Molded Plastic
Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.0018 ounces,0.05grams
E
D
H
L
SMBF
Dim Min Max Typ
A
5.45 5.55 5.50
B
4.27 4.33 4.30
C
3.57 3.63 3.60
D
1.32 1.38 1.35
E
1.96 2.00 1.98
H
0.019 0.021 0.20
L
0.73 0.77 0.75
All Dimensions in mm
A
Maximum Ratings and Electrical Characteristics
Characteristic
T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Symbol
SS32BF SS33BF SS34BF SS35BF SS36BF SS38BF SS310BF
Unit
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
L
(see fig.1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 3.0A
Maximum DC reverse current
T
A
=25 C
at rated DC blocking voltage
T
A
=100 C
Typical junction capacitance (NOTE 1)
Typical thermal resistance (NOTE 2)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
(AV)
20
14
20
30
21
30
40
28
40
50
35
50
3.0
60
42
60
80
56
80
100
70
100
V
V
V
A
I
FSM
V
F
I
R
C
J
R
JA
100.0
0.55
0.5
20
500
-65 to +125
10
300
55.0
-65 to +150
-65 to +150
0.70
0.85
A
V
mA
pF
°C/W
°C
°C
T
J
,
T
STG
Note:1.Measured
at 1MHz and applied reverse voltage of 4.0V D.C.
2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
