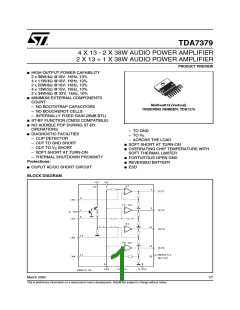

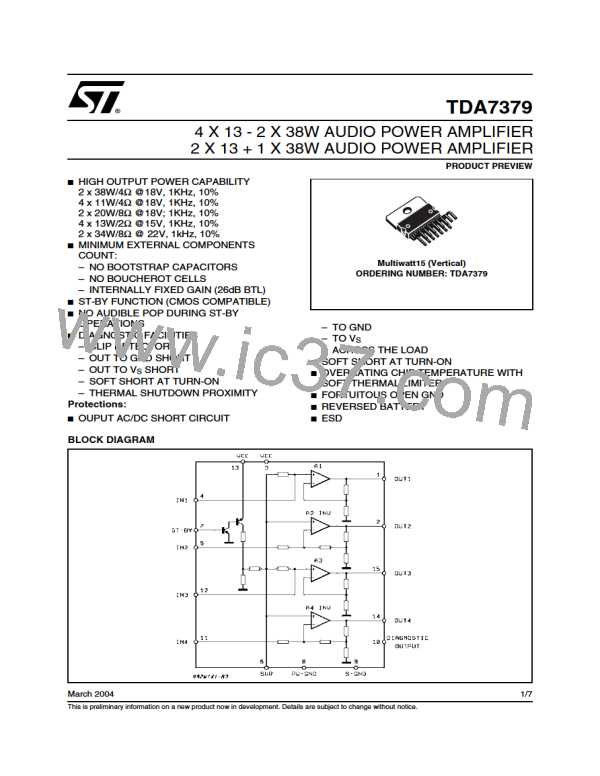

TDA7379

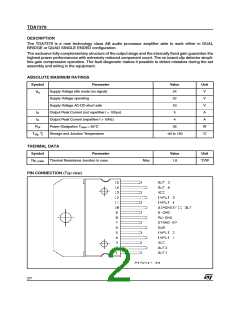

DESCRIPTION

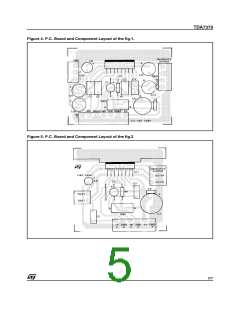

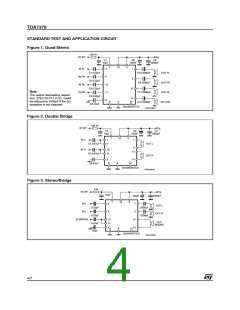

The TDA7379 is a new technology class AB audio processor amplifier able to work either in DUAL
BRIDGE or QUAD SINGLE ENDED configuration.
The exclusive fully complementary structure of the output stage and the internally fixed gain guarantee the
highest power performances with extremely reduced component count. The on board clip detector simpli-
fies gain compression operation. The fault diagnostic makes it possible to detect mistakes during the set
assembly and wiring in the equipment.

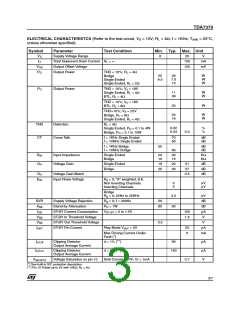

ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Supply Voltage Idle mode (no signal)
Supply Voltage operating
Value
Unit
V
24
Vs
22
V
Supply Voltage AC-DC-short safe
Output Peak Current (not repetitive t = 100µs)
Output Peak Current (repetitive f > 10Hz)
Power Dissipation Tcase = 85°C
20
V
IO
IO
5
A
4
36
A
Ptot
W
°C
Tstg, Tj
Storage and Junction Temperature
-40 to 150
THERMAL DATA
Symbol
Parameter
Value
Unit
Rth j-case
Thermal Resistance Junction to case
Max
1.8
°C/W

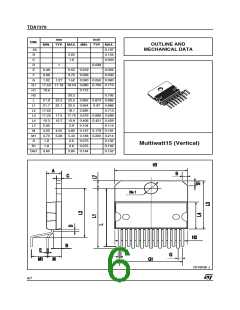

PIN CONNECTION (Top view)
2/7
