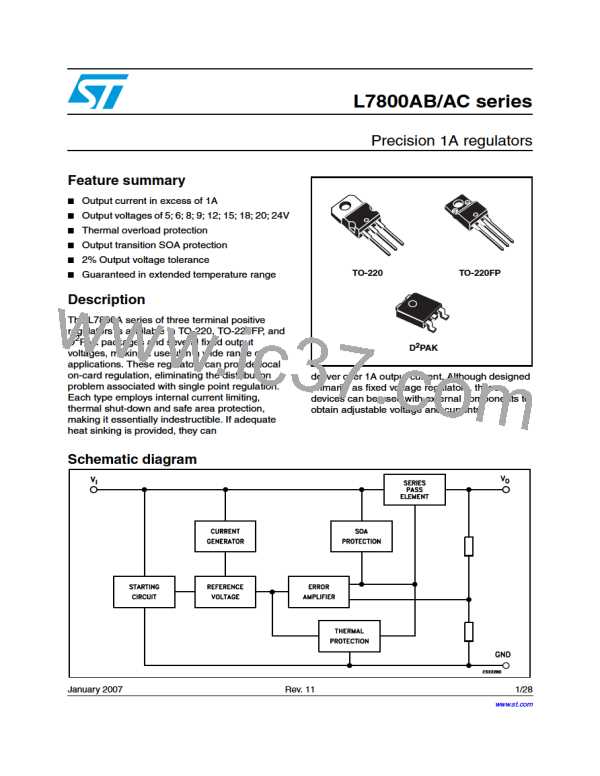

L7815ABD2T-TR图片预览
型号: L7815ABD2T-TR
PDF下载: 下载PDF文件 查看货源
内容描述: 精密1A稳压器 [Precision 1A regulators]
分类和应用: 线性稳压器IC调节器电源电路输出元件PC
文件页数/大小: 28 页 / 374 K
品牌: STMICROELECTRONICS [ STMICROELECTRONICS ]

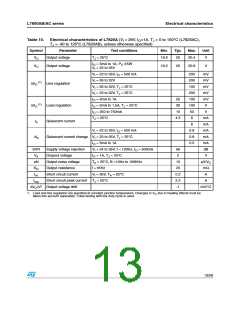

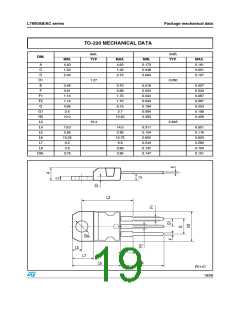

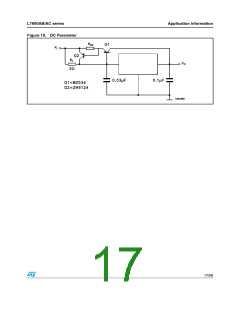

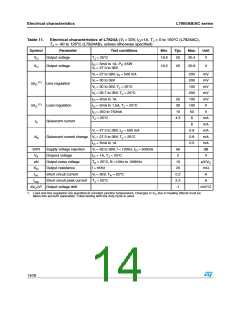

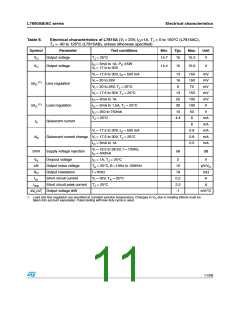

 浏览型号L7815ABD2T-TR的Datasheet PDF文件第11页浏览型号L7815ABD2T-TR的Datasheet PDF文件第12页浏览型号L7815ABD2T-TR的Datasheet PDF文件第13页浏览型号L7815ABD2T-TR的Datasheet PDF文件第14页浏览型号L7815ABD2T-TR的Datasheet PDF文件第16页浏览型号L7815ABD2T-TR的Datasheet PDF文件第17页浏览型号L7815ABD2T-TR的Datasheet PDF文件第18页浏览型号L7815ABD2T-TR的Datasheet PDF文件第19页

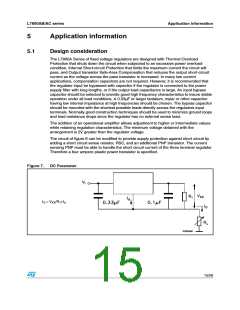

L7800AB/AC series
Application information
5
5.1
Application information
Design consideration
The L7800A Series of fixed voltage regulators are designed with Thermal Overload
Protection that shuts down the circuit when subjected to an excessive power overload
condition, Internal Short-circuit Protection that limits the maximum current the circuit will
pass, and Output transistor Safe-Area Compensation that reduces the output short-circuit
current as the voltage across the pass transistor is increased. In many low current
applications, compensation capacitors are not required. However, it is recommended that
the regulator input be bypassed with capacitor if the regulator is connected to the power
supply filter with long lengths, or if the output load capacitance is large. An input bypass
capacitor should be selected to provide good high frequency characteristics to insure stable
operation under all load conditions. A 0.33µF or larger tantalum, mylar or other capacitor
having low internal impedance at high frequencies should be chosen. The bypass capacitor
should be mounted with the shortest possible leads directly across the regulators input
terminals. Normally good construction techniques should be used to minimize ground loops
and lead resistance drops since the regulator has no external sense lead.
The addition of an operational amplifier allows adjustment to higher or intermediate values
while retaining regulation characteristics. The minimum voltage obtained with the
arrangement is 2V greater than the regulator voltage.

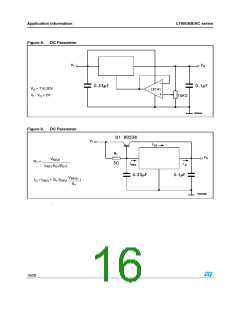

The circuit of figure 6 can be modified to provide supply protection against short circuit by
adding a short circuit sense resistor, RSC, and an additional PNP transistor. The current
sensing PNP must be able to handle the short circuit current of the three terminal regulator
Therefore a four ampere plastic power transistor is specified.
Figure 7.
DC Parameter
I
O
= V
XX
/R
1
+I
d
15/28
