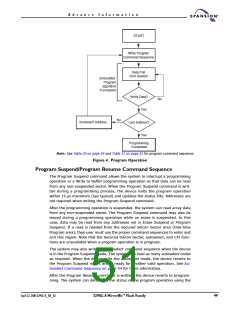

When the Embedded Program algorithm is complete, the device then returns to
the read mode and addresses are no longer latched. The system can determine
the status of the program operation by using DQ7 or DQ6. Refer to the Write Op-
eration Status section for information on these status bits. Any commands
written to the device during the Embedded Program Algorithm are ignored. Note
that the Secured Silicon Sector, autoselect, and CFI functions are unavailable
when a program operation is in progress. Note that a hardware reset immedi-
ately terminates the program operation. The program command sequence
should be reinitiated once the device returns to the read mode, to ensure data
integrity.
Programming is allowed in any sequence of address locations and across sector
boundaries. Programming to the same word address multiple times without in-
tervening erases (incremental bit programming) requires a modified
programming method. For such application requirements, please contact your
local Spansion representative. Word programming is supported for backward
compatibility with existing Flash driver software and for occasional writing of in-
dividual words. Use of write buffer programming (see below) is strongly
recommended for general programming use when more than a few words are to
be programmed. The effective word programming time using write buffer pro-
gramming is approximately four times shorter than the single word
programming time.
Any bit in a word cannot be programmed from 0 back to a 1. Attempting
to do so may cause the device to set DQ5=1, or cause DQ7 and DQ6 status bits
to indicate the operation was successful. However, a succeeding read shows that
the data is still 0. Only erase operations can convert a 0 to a 1.
Unlock Bypass Command Sequence
The unlock bypass feature allows the system to program words to the device
faster than using the standard program command sequence. The unlock bypass
command sequence is initiated by first writing two unlock cycles. This is followed
by a third write cycle containing the unlock bypass command, 20h. The device
then enters the unlock bypass mode. A two-cycle unlock bypass mode command
sequence is all that is required to program in this mode. The first cycle in this
sequence contains the unlock bypass program command, A0h; the second cycle
contains the program address and data. Additional data is programmed in the
same manner. This mode dispenses with the initial two unlock cycles required in
the standard program command sequence, resulting in faster total programming
time. Table 30 on page 54 and Table 31 on page 55 show the requirements for
the command sequence.
During the unlock bypass mode, only the Unlock Bypass Program and Unlock By-
pass Reset commands are valid. To exit the unlock bypass mode, the system
must issue the two-cycle unlock bypass reset command sequence. The first cycle
must contain the data 90h. The second cycle must contain the data 00h. The de-
vice then returns to the read mode.
Write Buffer Programming
Write Buffer Programming allows the system write to a maximum of 16 words/
32 bytes in one programming operation. This results in faster effective program-
ming time than the standard programming algorithms. The Write Buffer
Programming command sequence is initiated by first writing two unlock cycles.
This is followed by a third write cycle containing the Write Buffer Load command
written at the Sector Address in which programming occurs. The fourth cycle
